FEAM RCDE Hazardous Area Floodlight Lighting Zone 1 & Zone 2 Incandescent and Discharge Lamps

FEAM Lighting - Hazardous Area & Explosion Proof Lighting

FEAM RCDE

Hazardous Area Lighting  Zone 1 & Zone 2

FEAM RCDE Floodlight Lighting - Mechanical Features

• Marine grade copper free aluminum body
• Tempered front glass diffuser
• Adjustable type hot dip galvanized steel support
• Internal polished aluminium reflector
• External epoxy powders painting, grey RAL-9006 colour
• External stainless steel screws
• Silicone rubber gasket
• 3/4” NPT size threaded cable entry

FEAM RCDE Floodlight Lighting - Electrical Features

• Power supply (prc): conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
• Lampholders: porcelain E40 size
• Internal wiring: high-temperature resistant silicon rubber insulation cables
• Terminals: suitable up to 4mm/sq cables

FEAM RCDE hazardous area and explosion proof floodlight lighting ranges are available in 230V-50Hz power supply. FEAM RCDE hazardous area lighting fixtures are available for Incandescent Lamps (300W - 500W), Blended Light Lamp (500W), High Pressure Mercury Vapour Lamp (250W - 400W), High Pressure Sodium Lamp (250W - 400W), Metal Halide Lamp (250W-400W)

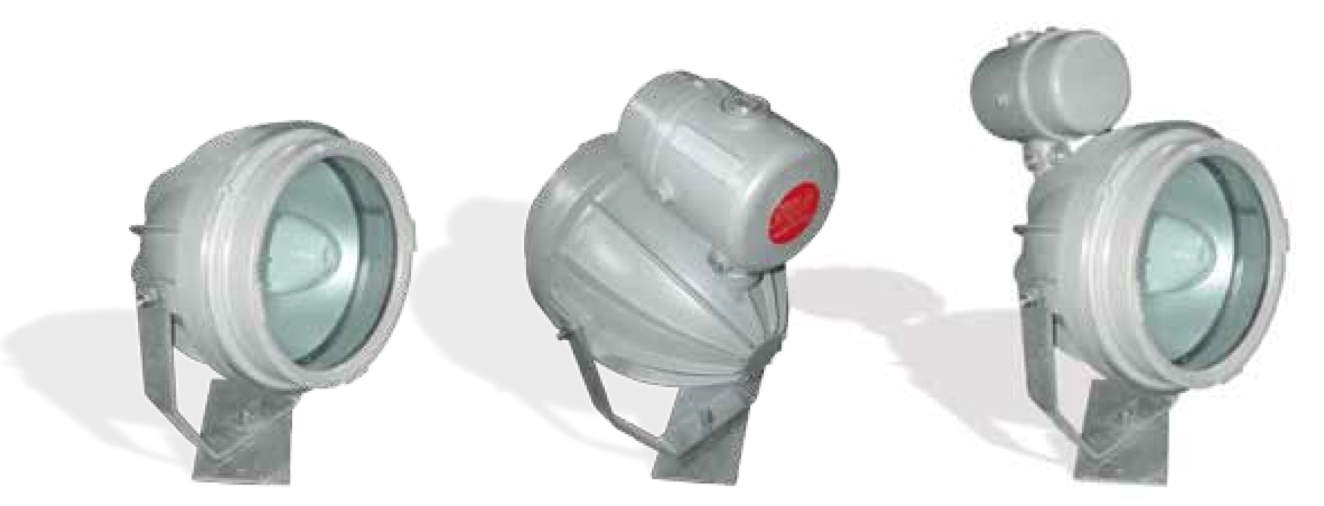

Pictured: FEAM RCDE Hazardous Area Floodlight Lighting  Zone 1 & Zone 2 Incandescent and Discharge Lamps

In 2015 FEAM were acquired by Bartec Group, a world leading hazardous area electrical equipment manufacturer.
