FEAM EVAC Hazardous Area Lighting Zone 1 & Zone 2 Incandescent and Discharge Lamps

FEAM EVAC Hazardous Area Lighting  Zone 1 & Zone 2 Incandescent and Discharge Lamps

FEAM Lighting - Hazardous Area & Explosion Proof Lighting

FEAM EVAC

Hazardous Area Lighting  Zone 1 & Zone 2



FEAM EVAC- Zone 1 Zone 2 Hazardous Area Lighting





FEAM EVAC Lighting - Mechanical Features

  • Marine grade copper free aluminum body (control gear & lamp body)
  • High temperature resistant borosylicate glass globe
  • External epoxy powders painting, grey RAL-9006 colourATEX
  • External stainless steel screws
  • Silicone rubber gasket
  • 3/4” NPT size threaded cable entry
  • AISI 316L stainless steel installation swivel bracket



FEAM EVAC Lighting - Electrical Features

  • Power supply (prc): conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
  • Lampholders: porcelain E27/E40 size
  • Internal wiring:high-temperature resistant silicon rubber insulation cables
  • Terminals: suitable up to 4mm/sq cables

FEAM EVAC hazardous area and explosion proof lighting ranges are available in 230V-50Hz power supply. FEAM EVAC hazardous area lighting fixtures are available for Incandescent Lamps (100W - 500W), Halogen Lamps (100W - 250W), High Pressure Mercury Vapour Lamp (80W - 400W), High Pressure Sodium Lamps (70W - 400W), Blended Light Lamp (160W - 250W).

In 2015 FEAM were acquired by Bartec Group, a world leading hazardous area electrical equipment manufacturer.

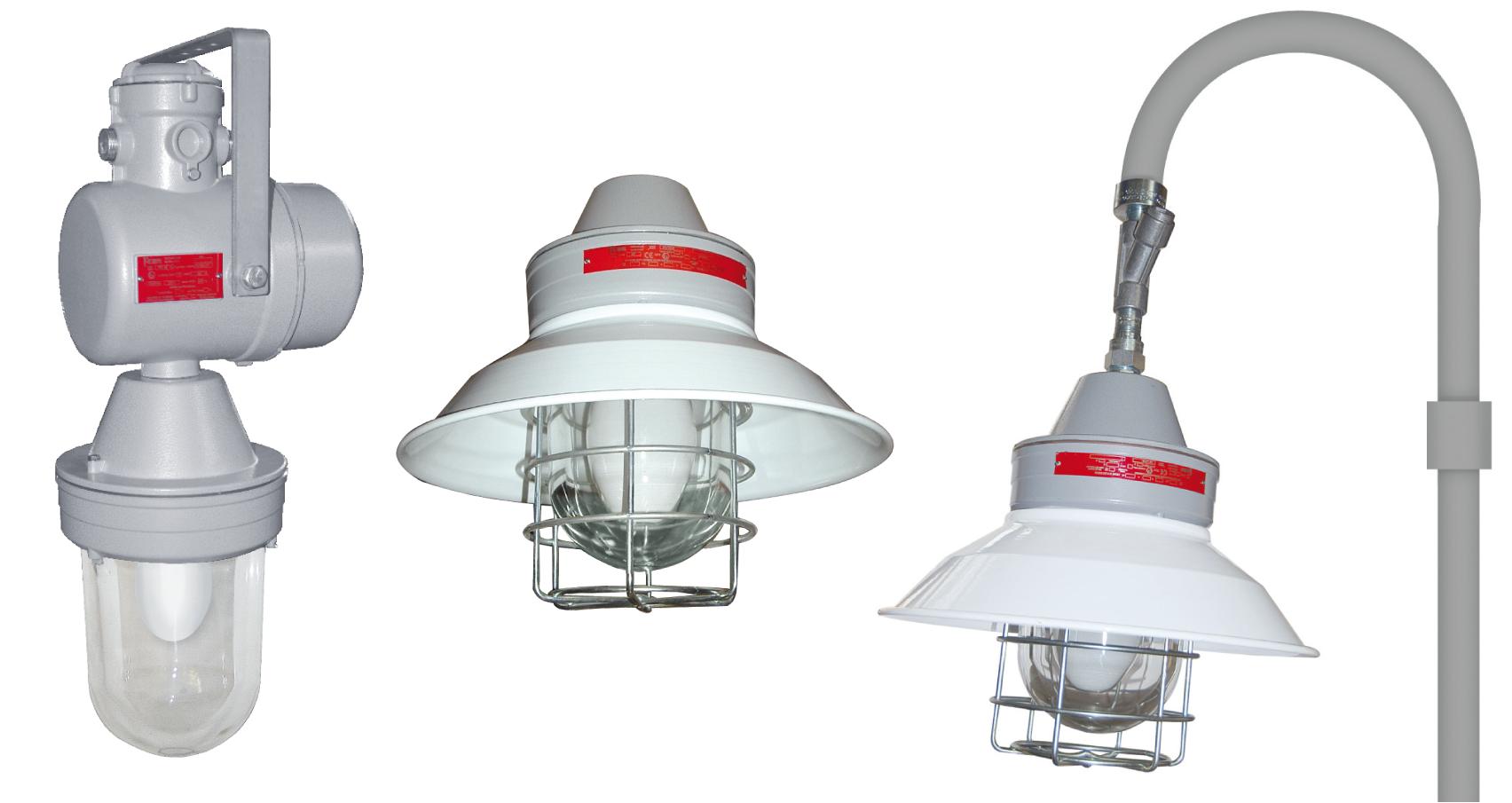

Pictured: FEAM EVAC Hazardous Area Lighting Zone 1 & Zone 2 Incandescent and Discharge Lamps

FEAM EVAC Zone 1 Zone 2 Hazardous Area Lighting
