Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat

Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat

Ellis Patents Emperor Stainless Steel Cable Cleats

ES44-52 Hazardous Area Cable Clamps

44mm-52mm Cable Outside Diameters

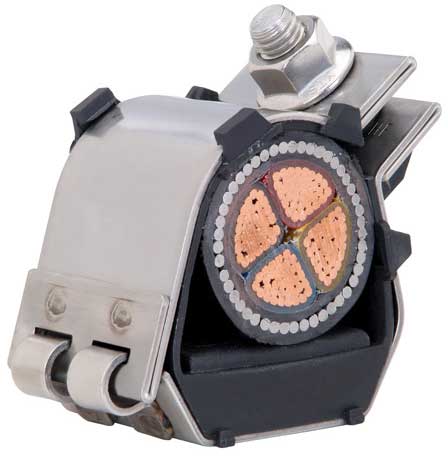

Pictured: Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat

Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat

Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat - Technical Specification
Part Number Cable Range Dimensions Weight
Min Dia mm Max Dia mm W mm H mm D mm P mm Fixing Holes
ES44-52 44 52 99 98 54 25 2 x M10 & 1 x M12 480g

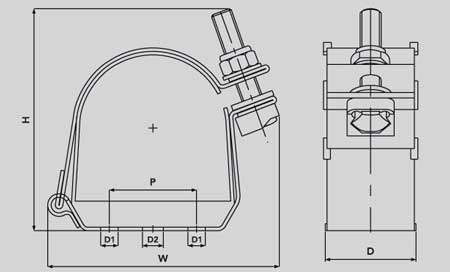

Pictured: Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat - Dimensions Illustration

Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat - Dimensions Illustration

Adobe

Ellis Patents ES44-52 Emperor Single Stainless Steel Cable Cleat - Spec Sheet
