UTX Chambers

UTX Chambers

UTX Chambers

Under Track Crossing

Trackside Chambers

UTX chambers are circular and lightweight - UTX chambers manufactured from GRC are simple and easy to install on the Network Rail network.BCM

UTX chambers are incorporated into GRC cable trough and elevated channel systems as part of an overall rail cable protection installation.

UTX chambers provide an ideal method of providing a junction or under track crossing, complete with GRC lid.



GRC UTX Chambers Product Offering
BCM Part Number Rail Industry Category Number Product Type Diameter (mm) Depth (mm) Weight (kg)
BCM C/12/11 4/090800 Small UTX Chamber 750 600 70
BCM C/12/04 4/090801 Small UTX Chamber 750 1200 120
BCM C/12/07 4/090802 Large UTX Chamber 1000 1300 140
BCM C/12/09 4/090803 Large UTX Chamber 1000 1700 170

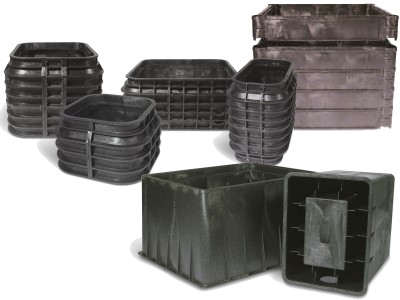

Pictured : UTX Chambers - Trackside Access Chambers. The trackside chamber range includes MultiDuct one piece preformed units, modular Polyvault range and the stackable Fortress range.

UTX Chambers - Trackside Access Chambers

CUBIS MultiDuct UTX system is a Network Rail approved method of building under track crossings that are faster, safer and cheaper to construct on the rail infrastructure.

Adobe

UTX Chambers - CUBIS UTX MULTIduct

Adobe

UTX Chamber - 750mm Diameter, 600mm Depth

Adobe

UTX Chamber - 750mm Diameter, 1200mm Depth

Adobe

UTX Chamber - 1000mm Diameter, 1300mm Depth

Adobe

UTX Chamber - 1000mm Diameter, 1700mm Depth
