Elastimold 775LR Tee Connector 33kV-36kV 1250 Amps

Elastimold 775LR Tee Connector 33kV-36kV 1250 Amps

Elastimold Connectors - 700 Series

Elastimold







33kV/36kV 1250A

35-630sqmm Cable Conductors

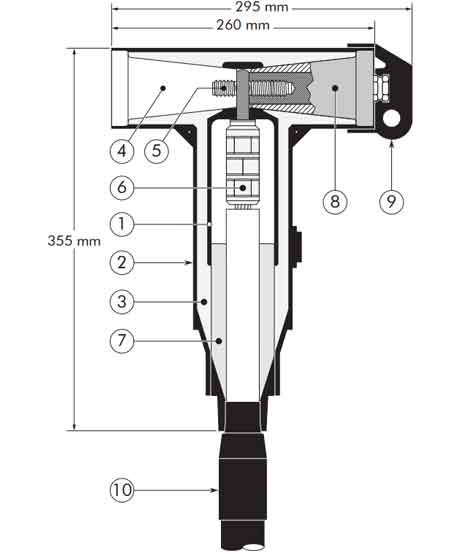

Elastimold 750LR Tee Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between insert and jacket
  4. Type E 1250A Bushing Interface as CENELEC EN50180 & EN50181
  5. Threaded stud 5/8"
  6. Conductor connector
  7. Cable reducer
  8. Dead-end cable plug
  9. Conductive rubber cap
  10. Cable adaptor



Elastimold 750LR 775LR Tee Connector - Interface-E



  • Elastimold Interface E - 5/8" Tee Connectors
Separable Connector  Voltage Um (kv)

Current Amps

 Conductor Sizes
Elastimold 750LR 33kV 36kV 800 35-630sqmm
Elastimold 775LR 33kV 36kV 1250 35-630sqmm



  • Elastimold Interface E - 5/8" Tee Connectors Selection Table
Elastimold Tee Connectors 800 Amp Elastimold Tee Connectors 1250 Amp Core Insulation Dia mm min. max.
750LR-G-X1+11TL 775LR-G-X2+11TL 19.3 24.1
750LR-H-X1+11TL 775LR-H-X2+11TL 21.6 26.7
750LR-J-X1+11TL 775LR-J-X2+11TL 24.9 30.0
750LR-K-X1+11TL 775LR-K-X2+11TL 27.7 33.3
750LR-L-X1+11TL 775LR-L-X2+11TL 30.0 37.2
750LR-M-X1+11TL 775LR-M-X2+11TL 34.8 41.1
750LR-N-X1+11TL 775LR-N-X2+11TL 38.5 45.2
750LR-P-X1+11TL 775LR-P-X2+11TL 43.8 49.1
750LR-Q-X1+11TL 775LR-Q-X2+11TL 48.3 53.9



  • Suitable for use with copper wire screened cables. For use with copper tape screened cables (MT kit required).

Elastimold separable tee connectors connect high voltage power cables to electrical equipment including switchgear, transformers and motors.

Elastimold produce cable accessories including Screened Separable Connectors (Straight & Elbow), Cold Shrink & Heat Shrink Cable Joints and Cable Terminations for the HV cable jointing and terminating of power cables.
