3M 7695-S4-3W Cold Shrink Cable Termination QT-III Outdoor High Voltage

3M 7695-S4-3W Cold Shrink Cable Termination QT-III Outdoor High Voltage

3M 7695-S4-3W

3M Cold Shrink 3 Core Outdoor Terminations

3M QTIII High Voltage

3M Cold Shrink







3M Cold Shrink 7600-S-3W three conductor (3 core) cable termination kits are skirted (integral with rain sheds) and designed for high voltage outdoor cable installations. Suitable for use on three conductor cables without internal ground wires.

3M Cold Shrink 7600-S-3W 3 conductor cable termination kits are designed to terminate high voltage power cables rated up to 33kV-35kV.

3M Cold Shrink outdoor cable terminations are skirted with rain sheds designed to disperse water when installed upright onto high voltage overhead lines.

3M 7695-S4-3W Outdoor Cold Shrink Cable Termination Kit Suits

  • 30-38.6mm Cable Insulation Range3M 7695-S4-3W
  • 300-325sqmm 3.3kV JIS HV Cable
  • 800-1000AWG 5kV AEIC HV Cable
  • 300-325sqmm 6.6kV JIS HV Cable
  • 750-1000AWG 8.7kV AEIC HV Cable
  • 200-325sqmm 15kV IEC HV Cable
  • 500-750AWG 15kV AEIC HV Cable
  • 240-300sqmm 20kV IEC HV Cable
  • 300-500AWG 25/28kV AEIC Cable
  • 150kV BIL

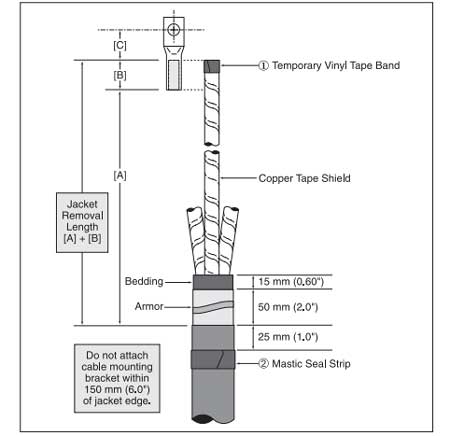

Medium Voltage Cable Preparation Using 3M Cold Shrink QT111 Outdoor 3 Core Cable Terminations

3M Outdoor Cold Shrink Termination
