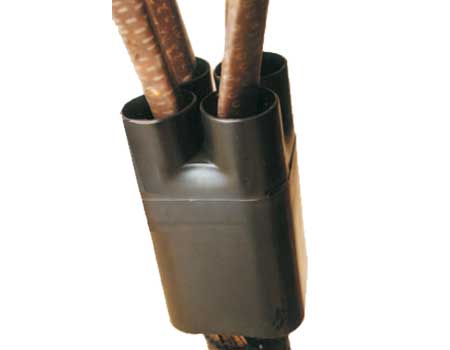

Low Voltage Heat Shrink Breakout Boots



LV heat shrink cable breakout boots provide excellent water sealing, mechanical abrasion protection, corrosion resistance and electrical insulation to low voltage cables.

Cable breakout boots suit 2 core, 3 core, 4 core and 5 core cable crutch sealing applications.

These SPS breakout boots are made from cross linked polyolefin and adhesive coated, these breakouts can be used in wide variety of applications.

Cable breakouts are moulded heat shrinkable components used where two or more cores emerge from a single cable - cable breakouts are lined with mastic sealant.

TIP - When heat shrinking cable breakouts ensure that the moulded cable breakout is fully pressed down into the cable crutch - a hammer shaft or similar tool will assist, heat shrink the centre first, lower skirt second, turrets last.

SPS Low Voltage Heat Shrink Breakout Boots

SPS Part Number	Legs	Skirt Diameter		Leg Diameter
		Expanded	Recovered	Expanded	Recovered
SPS 2CB 30/12	2	30mm	12mm	14mm	4.5mm
SPS 2CB 40/16	2	40mm	16mm	15mm	5mm
SPS 2CB 60/23	2	60mm	23mm	25mm	7.5mm
SPS 3CB 38/17	3	38mm	17mm	14mm	4.5mm
SPS 3CB 60/25	3	60mm	25mm	25mm	8mm
SPS 3CB 80/38	3	80mm	38mm	35mm	11mm
SPS 3CB 110/50	3	110mm	50mm	46mm	18mm
SPS 3CB 125/57	3	125mm	57mm	55mm	20mm
SPS 4CB 40/15	4	40mm	15mm	14mm	3.5mm
SPS 4CB 65/26	4	65mm	26mm	26mm	7mm
SPS 4CB 82/37	4	82mm	37mm	30mm	9mm
SPS 4CB 100/47	4	100mm	47mm	38mm	12mm
SPS 4CB 125/52	4	125mm	52mm	52mm	15mm
SPS 5CB 80/33	5	80mm	33mm	26mm	8mm
SPS 5CB 100/42	5	100mm	42mm	34mm	10mm



LV Heat Shrink Cable Breakout Boots (SPS) � 2, 3, 4 & 5 Core
