Low Voltage Heat Shrink Cable Breakout Boots

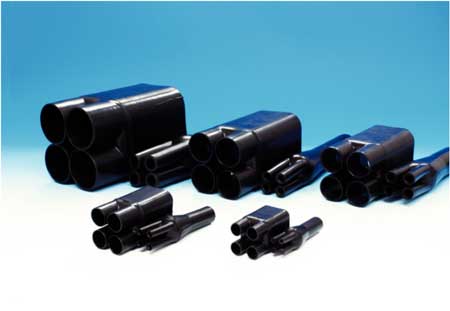

Heat Shrink 4 Core Cable Breakout Boots

Helashrink 400 Series



HellermannTyton 4 Core cable breakout boots are designed for insulating and sealing a 4 core cable crotch/crutch, or conduit system, providing excellent resistance to abrasion and weathering.

Cable breakout boots are supplied with an adhesive inner coating lining for reliable environmental sealing - 2, 3, 4, 5, and 6 core cable breakouts are available.



HellermannTyton 4 Core Cable Breakout Boots Features & Benefits

• Easy, time-saving insulation of cable branch point where it splits into single wires
• Made of tough, cross-linked, Polyolefin
• Adhesive to relieve mechanical tension in cable harnesses



HellermannTyton Heat Shrink 4 Core Cable Breakout Boots

Type	Cable dia (sqmm)		ØH min. a	ØH max. b	ØJ min. a	ØJ max. b	P± 10%	R± 10%	HW ± 20%	JW ± 20%	S nom	Article-No.
	Min	Max
442-1-B8WM250	2.5	10	28	9	9	1.8	78	17	2.7	2	20	404-42009
408-2-B8W2	4	35	35	12	15	3	95	24	2.5	2	22	404-08022
409-2-B8W2	35	70	47.4	22.9	21.5	6.4	165	38.1	4.1	3.3	38.1	404-09021
418-4-B8W2	70	150	60	22.9	30	6.4	202	38.1	4.1	3.3	38.1	404-18020
444-2-B8W2	150	400	95	35.6	35.6	12.5	240	55	4	3.5	50.8	404-44022
