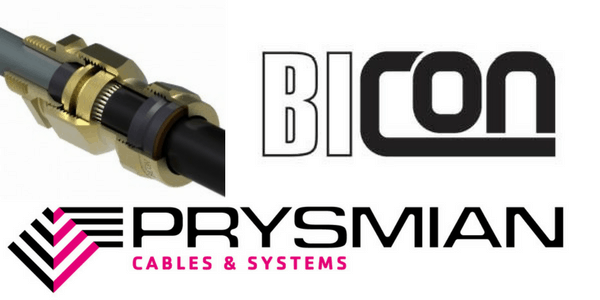

E1W40K BICC Brass Cable Gland Kit (Prysmian KAA413-57) 29.0-39.9mm

E1W Cable Glands

BICC Bicon Cable Gland E1W40K

 Prysmian KAA413-57

 Prysmian KAA413-57V Nickel Plated

Industrial Brass Cable Glands SWA



BICC Bicon E1W40K Cable Glands : Gland Kit Prysmian KAA413-57

E1W40K BICON Brass Cable Gland Kits

• Min Cable Dia 29.0mm
• Max Cable Dia 39.9mm
• Gland Entry Thread M40 x 1.5mm
• Gland Entry Thread Length 15mm

BICC Bicon E1W40K - Prysmian KAA413-57 Cable Gland Kit List

• E1W brass gland
• E1W brass earth tag provides earth continuity between gland and equipment
• E1W brass locknut
• 1 x E1W40K Prysmian brass  cable glands per kit

Prysmian E1W40K cable glands provide a IP66 double seal, the outer seal grips the cable sheath and the inner seal grips the bedding of the cable. Double compression seal E1W cable glands are available with Cast Integral Earth Lug (CIEL) for HV cables where the fault load is greater than 10.4kA - special application E1W cable glands include lead sheath, LSOH LSF cables and extreme temperature applications.

Gland Kit Prysmian KAA413-57

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Brass
• Cable Gland Size: E1W40
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

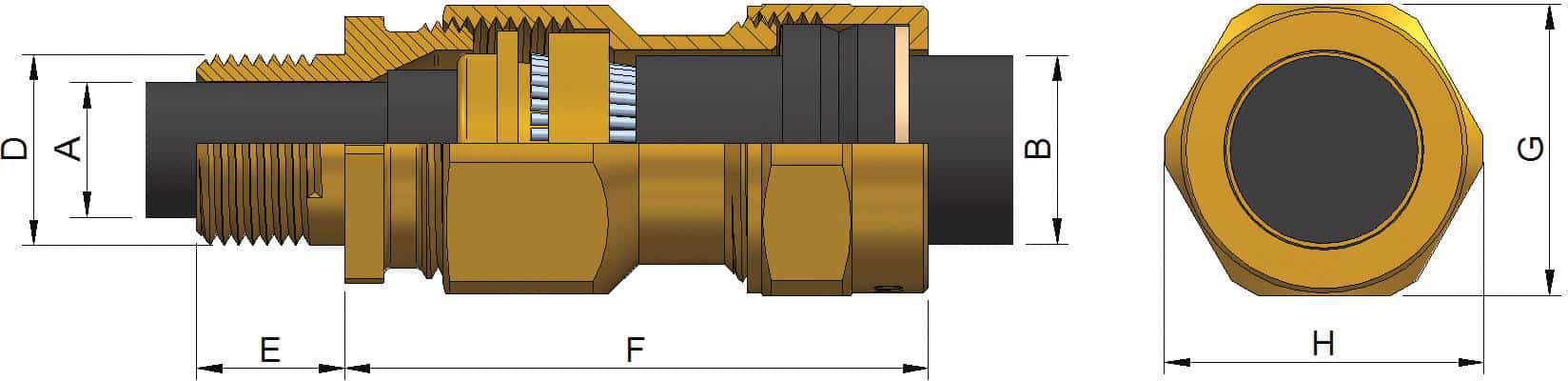

• Under Armour Cable Diameter (A): 32.1mm Maximum
• Under Armour Cable Diameter (B): 26.3mm Minimum
• Overall Cable Diameter (B): 29.0mm Minimum
• Overall Cable Diameter (B): 39.9mm Maximum
• Armour Wire Diameter: 1.6/2.0mm
• Entry Thread (D) : M40 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 59mm

• Hexagon A/F (G): 56.4mm
• Hexagon A/C (H): 61.5mm
• Order Code: Prysmian E1W40 421LSF-57
• Industrial Application Also: Prysmian E1W40 Cable Gland KAA413-57

T&D distribute the complete range of Prysmian Hazardous Area Cable Glands with ATEX certificaton for Zone 1 and Zone 2 installations.
