Webtool HP690 Hydraulic Intensifier Panel







Designed for safety, the Webtool HP690 intensifier panel features a unique hydraulic circuit that automatically releases the pressure on the output side as soon as the input pressure is removed, making it safe to use for all double acting tools including the Webtool range of high pressure cutters and grippers.

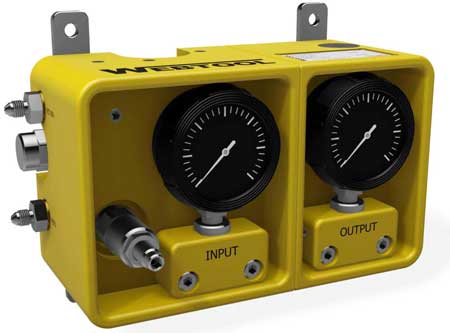

Pictured: Webtool HP690 Hydraulic Intensifier Panel

Webtool HP690 Hydraulic Intensifier Panel

The safety features on the hydraulic intensifier ensure that problems caused by pressure build up due to surfacing or temperature rise are eliminated.

It also simplifies the operating procedures for many double acting tools, removing the need for the operator to reverse the flow before surfacing. It will also release the pressure to the tool in the case of HPU failure (dead stick)

The Webtool HP690 hydraulic intensifier panel can be used with all Webtool™ cutting and gripping tools and is also compatible with third party equipment.

The intensifier panel is suitable for double acting circuits, and contains a user adjustable pressure relief valve as well as the industry standard Minibooster intensifier with either a 4:1 or 3.2:1 pressure intensification ratio.

When using a 3.2:1 intensifier, the maximum output pressure of 690 bar (10,000 psi) is achieved with an input pressure of 215 bar (3,120 psi).

Webtool HP690 Hydraulic Intensifier Panel Features & Benefits:

  • Compact and robust aluminium construction
  • Corrosion resistant coated aluminium and stainless steel construction
  • Pressure gauges recessed into the body for protection
  • Can be used at any water depth
  • Dual pressure gauges to show input and output pressures
  • Compatible with 2 port hotstabs
  • No additional drain port is required
