WT Henley House Service Cut-outs

 House Service Cutouts - WT Henley Series 7



WT Henley Series 7 house service cut-outs are designed for use on Combined Neutral & Earth Systems (CNE).

WT Henley Series 7 Features

  • BS7657 : 2010 approved and tested cutout
  • Designed to ensure secure connection and low contact resistance
  • Cutout manufactured from GRP glass reinforced polyester
  • Close-coupled version interfaces with industry standard meter types
  • Insulated busbar available for connecting a second Single Pole cutout
  • Tamper resistant "pin and plug" protect unused cable entries

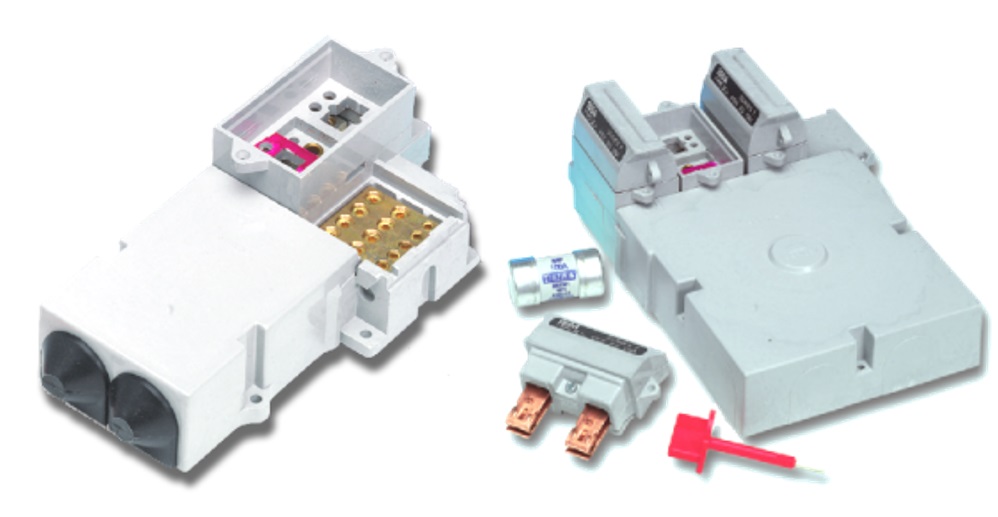

Pictured : WT Henley House Service Cutouts - Series 7

WT Henley House Service Cutouts - Series 7


WT Henley Series 7 single pole (SP) and single pole plus neutral/earth (SP+N/E) house service cut-outs are available.

WT Henley Series 7 Close Coupled house service cut-outs feature a specially designed turret which interfaces directly with electricity meter entry ports to prevent the theft of un-metered electricity via tap-offs between the cut-out and meter. The Series 7 range also includes protection chambers and insulated busbars for simple connection of a second single pole house service cut-out.

WT Henley House Service Cutouts - Series 7

Pictured: WT Henley House Service Cutouts - Series 7 Dimensions

WT Henley House Service Cutouts - Series 7 Dimensions


WT Henley Series 7 House Service Cut Outs - Overview

  • Standard single pole (SP) cut out
  • Standard single pole and neutral/earth (SP & N/E) cut out
  • Closed coupled SP & N/E cut out
  • Protection chambers for SP & N/E and to & N/E versions
  • Insulated busbar for simple connection of a second SP cut out/service
  • Fuse carriers rated at 60/80A or 100A
  • SP & N/E isolator - denoted by red fuse carrier - replaces fuse with solid link

House Service Cut Outs - WT Henley Series 7

Product Specification

Cut Out Description WT Henley House Service Cut Out Part Number
60/80A 100A
Single Pole Cut Out 54131-04 54132-04
Single Pole and Neutral (with combined neutral earth) 54137-04 54138-12
Close Coupled Design
Single Pole and Neutral (with combined neutral earth) 54138-02 54138-05
Protection Chambers (with 2 PVC Bushes and blank entries)
For Single Pole and Neutral and Earth set 54315-06
For Triple Pole and Neutral and Earth set 54315-49
Accessories and Spares
Insulated Busbar 54382-01
Fuse Carriers 60/80A 100A
54365-04 54365-22
Insulated Hexagon Headed Screwdriver 53485-36
Solid link in red carrier (used in place of fuselink)  54365-08
Fuselink BSHD 60269-3:2010, BS 88-3:2010
16 x 22 x 57mm to suit 60/80A Carrier 16 x 30 57mm to suit 100A Carrier
30A 58332-04 30A 58332-30
60A 58333-07 60A 58333-11
80A 58334-08 80A 58334-04
100A 58334-09 100A 58334-06
Isolator
Single Pole and Neutral and Earth (fitted with red solid link carrier) 54361-05
Maximum Cable Sizes
Phase and Neutral (incoming and outgoing) 35sqmm
Earth 25sqmm
Time switch 10sqmm
