WT Henley 54121-05, Single Pole, 60/80Amp House Service Cut-out

WT Henley House Service Cutouts - Series 5

WT Henley 54121-05

Single Pole, 60/80Amp House Service Cut-out

WT Henley Series 5 cut-outs are suitable for PILC (paper) and XLPE (polymeric) cables, equipped with interchangeable Phase and Neutral terminals to enable simple installation, without the need to disturb cable polarity.

WT Henley 54121-05 cutouts feature sealing chambers to enable simple cable jointing without the need to bend service cables.

WT Henley 54121-05 Cutout Dimensions

• Length 98mm
• Width 42mm
• Depth 95mm

Cartridge Fuselinks available seperately, (BS 1361)
30Amp   Fuselink - 58332-04
60Amp   Fuselink - 58333-07
80Amp   Fuselink - 58334-08
100Amp Fuselink - 58334-09

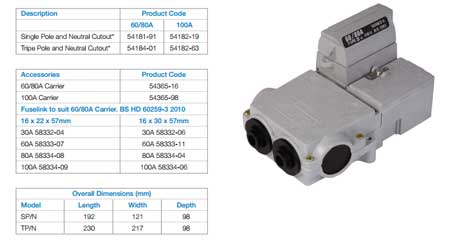

Pictured : WT Henley Series 5 House Service Cutouts

60A 80A 100A 240/415V (Single Pole & Neutral, Triple Pole & Neutral)

House Service Cut Outs 240V 415V CNE & SNE - WT Henley Series 5, 6, 7

T&D with WT Henley offer a range of Heavy Duty Cut-Outs.

WT Henley 60-80Amp House Service Cut-outs - Series 5 - 54121-05
