Switchboard & Switchgear Rubber Insulating Matting

CATU Insulating Matting

Conforms to IEC 61111 & EN 61111

CATU's insulating mats provide individual and collective protection and are used to cover the ground for electrical protection of operators during work or interventions on electrical installations.

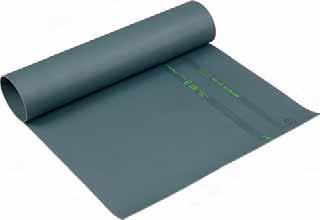

Pictured: CATU Insulating Mats


CATU Insulating Mats

CATU Insulating Mats - Product Range
Part Ref Class Maximum Voltage Thickness Dimensions Weight
MP-11/11 0 - ≤1,000V ≤1,500V 2mm 1m x 1m 2.9kg
MP-11/16 0 - ≤1,000V ≤1,500V 2mm 0.6m x 1m 1.4kg
MP-42/11 3 - ≤26,500V ≤39,750V 3mm 1m x 1m 4.5kg
MP-42/16 3 - ≤26,500V ≤39,750V 3mm 0.6m x 1m 2.9kg
MP-42/66 3 - ≤26,500V ≤39,750V 3mm 0.6m x 0.6m 1.8kg
MP-60/05-1 4 - ≤36,000V ≤54,000V 5mm 0.6m x 1m 4.4kg
MP-100/02-10 0 - ≤1,000V ≤1,500V 2mm 1m x 10m 29kg
MP-60/03-5 3 - ≤26,500V ≤39,750V 3mm 0.6m x 5m 14kg
MP-60/03-10 3 - ≤26,500V ≤39,750V 3mm 0.6m x 10m 28kg
MP-100/03-5 3 - ≤26,500V ≤39,750V 3mm 1m x 5m 25kg
MP-100/03-10 3 - ≤26,500V ≤39,750V 3mm 1m x 10m 53.5kg
MP-60/05-5 4 - ≤36,000V ≤54,000V 5mm 0.6m x 5m 28kg
MP-60/05-10 4 - ≤36,000V ≤54,000V 5mm 0.6m x 10m 44kg
MP-100/05-5 4 - ≤36,000V ≤54,000V 5mm 1m x 5m 45kg
MP-100/05-10 4 - ≤36,000V ≤54,000V 5mm 1m x 10m 89kg
Part Ref Description U Max kV Thickness Dimensions Weight
MP-100/10-5 Adapted to the B High Voltage 90kV 10mm 1m x 5m 87kg
MP-100/10-10 Adapted to the B High Voltage 90kV 10mm 1m x 10m 154kg
