SM551 11kV Tested Switchgear & Switchboard Matting - 450v Working Voltage

Insulating Matting

VDE0303 Electrical Safety Rubber Matting

Tested Voltage 11kV

Working Voltage 450v

SM551 Electro Safe

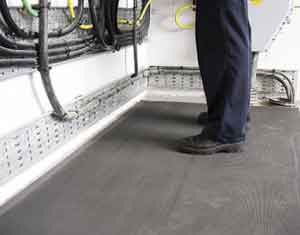

Fully tested general-purpose electrical safety rubber matting and stamped on the reverse every 100cm. High quality, rubber compound, electrical safety, switchgear matting made to exacting standards and fully tested to 11kV.

11kV tested and certified electrical switchboard/switchgear matting is 6.0mm thick and provides safe working voltage to 450V.

11kV Standard Matting Stock Sizes (6mm Thick)

• 11kV Rubber Electrical Switchboard Matting 1m x 10m - ex stock
• 11kV Rubber Electrical Switchboard Matting 1.2m x 10m - ex stock
• 11kV Rubber Electrical Switchboard Matting 0.91m x 10m - made to order

Fine Ribbed Rubber Matting to 11,000v

• Working Voltage Test 450 Volts

11kV Insulating Matting

Matting Thickness	Roll Size 10m x 0.91m	Roll Size 10m x 1m	Roll Size  10m x 1.2m	Weight/sqM kgs Approx	Tested Voltage	Working Voltage
6mm	To Order	Ex Stock	Ex Stock	6.8	11kV	450V



SM551 Electrical Matting Specification

• Colour : Black
• Hardness : 60 shore A
• Density (SG) : 1.3
• Tensile Strength : 5.0Mpa
• Elongation : 250%
• Temperature Range : -20/+70 Degrees Celsius
• Abrasion Resistance : 180mm3

450V Working / 11kV Tested Voltage - Insulating Matting Details

• Application: Insulating Matting for Substations/Switchgear/Electrical Safety
• Thickness: 6mm
• Resistance to: Please call T&D
• Colour: Black
• Insert Requirements: No
• Solid: Yes
• Drainage Holes: No

T&D distribute LV, MV & HV insulating matting and electrical safety equipment for use in substations, switchrooms, overhead line and underground cable installations including 6.6kV, 11kV, 33kV and 66kV-132kV voltages.

Switchboard/Gear Matting - Insulating Rubber Electrical Safety Matting - 11kV Tested, 450v Working
