Lucy Titan Cut Out NT10 Single Phase, Double Pole + Spur Fuse Unit Cut Outs (2 Fuse Loop in/out)

Lucy Lighting Cut-outs - Single & Double Pole Titan Cut-outs

Single Phase, Double Pole Fuse Units

Lucy Titan 2 Cutouts - Type NT10





Lucy Lighting Titan Fuse Unit Cut Outs

Type Titan NT10

Single Phase, Double Pole + Spur

Loop in/out 2 Fuses, with double pole fused spur

Lucy Titan Cut Out - Dimensions

• Height 150mm
• Width 81mm
• Depth 65mm

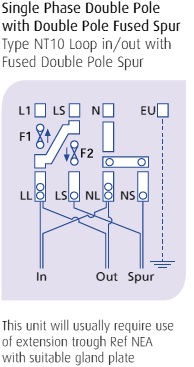

• L1 Live Feed Out
• L2 Second Live Feed Out
• EU Earth Block In Upper Chamber
• LL Live Supply Loop
• LS Live Spur
• NL Neutral Supply Loop
• NS Neutral Spur
• N Neutral













Pictured : Lucy Lighting Cut-outs - Single & Double Pole Titan Cut-outs



T&D offer Lucy House Service Cut Outs Both Single & Triple Phase 60A 80A 100A.

Single Phase, Double Pole, Plus Spurs, Loop In/Out, Double Fuse Titan Cut-out - NT10
