Varicleat - Ellis Patents Stainless Steel Cable Cleats

Ellis Patent Cable CleatStainless Steel Cable Cleats - Ellis Patents Varicleats







Ellis Patents Varicleat stainless steel cable cleats are available for trefoil, siEllis Patents Varicleats ngle and bundled cable applications where moderate levels of short circuit withstand are required.

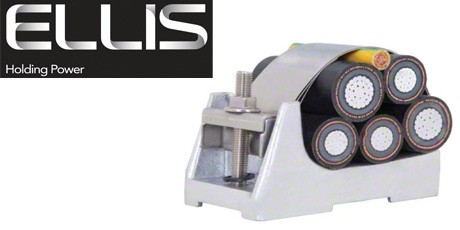

The unique stainless steel Ellis Patent Varicleat design allows the separate over-strap to be installed after the cables have been positioned. The Varicleat cable cleat base is cast in aluminium - the cable cleat over-strap is manufactured from type 316 stainless steel (a silicone LSF liner is available on request). Stainless steel varicleats are suitable for single, trefoil and bundled cable cleat applications.

Ellis Patents stainless steel Varicleats have been tested in accordance with the European Standard of "Cable Cleats for Electrical Installations"  BS EN 50368 : 2003 - Ellis Patents are the global leader in the manufacture of quality, trusted stainless steel cable cleats.

Varicleat - Ellis Patents Stainless Steel Cable Cleats  - Selection Table for Single & Trefoil
Part No Cable Range (no liner) Fixing Holes
Trefoil Dia (mm) Single Dia (mm)
VC-AN1-AN0 21-24 36-43 2xM8
VC-AN2-AN0 22-26 41-48 2xM8
VC-AN3-AN0 24-28 44-51 2xM8
VC-AN4-AN0 26-30 49-54 2xM8
VC-BN1-AN0 29-33 51-59 2xM8
VC-BN2-AN0 30-35 55-63 2xM8
VC-BN3-AN0 32-37 60-68 2xM8
VC-BN4-AN0 34-38 64-70 2xM8
VC-CN1-AN0 37-42 68-76 2xM8
VC-CN2-AN0 39-44 72-81 2xM8
VC-CN3-AN0 42-47 76-85 2xM8
VC-CN4-AN0 44-48 81-87 2xM8
VC-DN1-AN0 47-53 86-96 2xM8+1xM10
VC-DN2-AN0 50-56 91-100 2xM8+1xM10
VC-DN3-AN0 54-59 96-105 2xM8+1xM10
VC-DN4-AN0 56-60 101-106 2xM8+1xM10
VC-EN1-AN0 59-63.5 105-112 2xM8+1xM10
VC-EN2-AN0 62-67.0 111-118 2xM8+1xM10
VC-EN3-AN0 65.0-70.0 118-125 2xM8+1xM10
VC-EN4-AN0 68-74 125-132 2xM8+1xM10
VC-FN1-AN0 71-76 125-140 3xM12
VC-FN2-AN0 74-80 132-145 3xM12
VC-FN3-AN0 78-84 139-152 3xM12
VC-FN4-AN0 82-88 148-160 3xM12
VC-GN1-AN0 84-91 145-160 3xM12
VC-GN2-AN0 88-95 155-170 3xM12
VC-GN3-AN0 92-99 165-180 3xM12
VC-GN4-AN0 96-103 175-190 3xM12
VC-HN1-AN0 98-106 170-190 3xM12
VC-HN2-AN0 102-110 180-200 3xM12
VC-HN3-AN0 106-114 190-205 3xM12
VC-HN4-AN0 110-118 200-215 3xM12
