Seaward AGL-5

Airfield Ground High Voltage HV Indicators & Detectors

The Seaward AGL-5 Airfield Ground Lighting High Voltage HV Detector is a two pole voltagedetector designed specifically for use on offshore systems or airfield ground lighting systems up to 5kV.

The Seaward AGL-5 high voltage detector instrument indicates the presence of voltages greater than 50V AC/ 70V DC and is ideal for proving dead on remotely operated vehicles or AGL systems up to 5000V AC or DC.

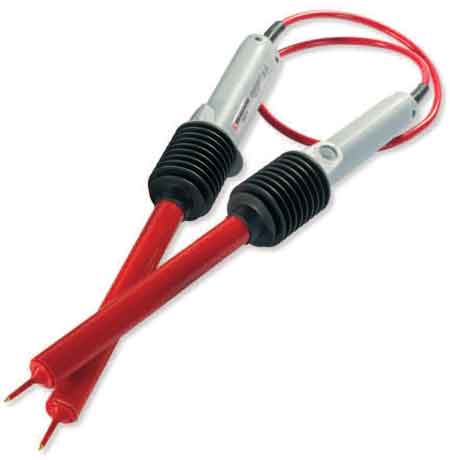

Pictured: Seaward AGL-5 Airfield Ground Lighting High Voltage HV Detector

The Seaward AGL-5 Airfield Ground Lighting high voltage detector unit is totally encapsulated in a high impact rugged enclosure and is IP64 rated.

The ultra-bright high intensity red LED indicators and a polarizing filter on the Seaward AGL-5 makes it clearly visible in all working environments.

The AGL-5 high voltage detector is supplied complete with a proving unit for proof testing before and after use and a protective carry case. The Seaward AGL-5 high voltage detector has been designed for use on offshore, remotely operated vehicles and airfield ground lighting systems

Seaward AGL-5 Airfield Ground Lighting High Voltage HV Detector Features:

• Rated at 5kV
• Seaward AGL-5 is compliant with all standards
• High Visibilty Indicators
• Proving Unit & Carry Case included with the AGL-5
• Seaward HV detector is compact and portable

Seaward AGL-5 Airfield Ground Lighting High Voltage HV Detector Applications:

• Offshore Maintenance
• AGL Maintenance
• ROV Maintenance
• AGL Manufacturing

Seaward AGL-5 Airfield Ground Lighting High Voltage HV Detector Specifications:

AGL-5 Two Pole Voltage Detector

• AGL-5 Working Voltage: 5000DV DC Max
• AGL-5 Threshold Voltage: 50V AC/ 70V DC
• Seaward Voltage Detector Circuit Current:  <3.5mA
• Seaward AGL-5 indicator: 2 ultra-bright red LED
• Compliance IEC 61243-2 & IEC 61243-3
• Seaward AGL-5 Part No: 37A910

PH3-LLT Proving Unit

• PH3-LLT Output Voltage: 500V DC Nominal
• PH3-LLT Output Current: 0.45mA into 2kohm
• Two non-touchable Terminals
• Seaward Proving Unit has a neon 'active' indicator
• Compliance BS EN 61010-1
