Ripley Utility Tool WS-MSES - Mid-Span Tool for Primary Tap Wire

Ripley Tools

Overhead Primary Distribution Cable Preparation Tools

Ripley WS-MSES

Mid-Span Tool for Primary Tap Wire

Ripley WS-MSES mid-span tool for primary tap wire is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS-MSES is able to quickly and efficeintly remove polyethylene covering on primary voltage tap or riser wires. The design of the tool allows easy removal of a section of the cable jacket at mid span for the purpose of clamping to lightning arrestors.

The WS-MSES tool is specific to cable size and strips the cable without any conductor damage. The mid-span tool can easily be positioned on the cable with an unique spring loaded locking bolt which has a ring pull at the end serving as an attachment to a tool belt or pouch.

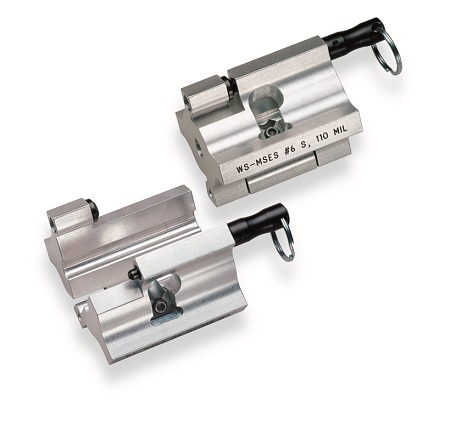

Pictured: Ripley Utility Tool WS-MSES - Mid-Span Tool for Primary Tap Wire

Ripley Utility Tool WS-MSES - Mid-Span Tool for Primary Tap Wire Specifications:

• Length: 4.25 in (108 mm)
• Weight: 15 oz (426 g)
• Common Wire Sizes: #2, #4 and #6 AWG with 110 mil coverings. Other covering thicknesses available.
• Replacement Blade: CB 223 (37111)
• Made in the U.S.A.
