Underground Cable Preparation Tools

Ripley WS 9A & WS 9C

Semi-Con Shield Shaving Tools

Ripley WS 9A & WS 9C Semi-Con Shield Shaving Tools are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 9A & WS 9C tools are used to shave bonded semi-con shield and insulation material in a helical, spiral pattern.

It is ideal for 5-115kV cables with an outer diameter from 0.55-2.25 in (13.97-57.15mm).

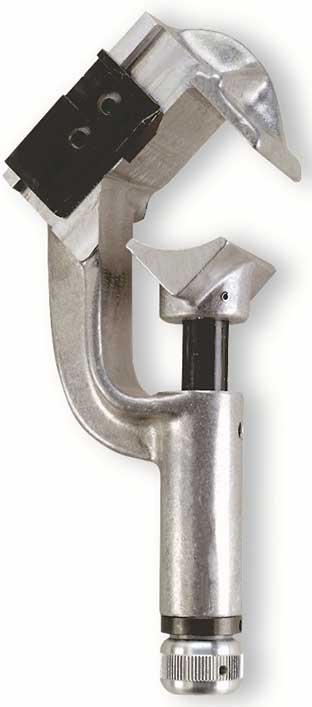

Pictured: Ripley Utility Tool WS 9A & WS 9C Semi-Con Shield Shaving Tools

Ripley Utility Tool WS 9A & WS 9C Semi-Con Shield Shaving Tools

Ripley Utility Tool WS 9A & WS 9C Semi-Con Shield Shaving Tools Specifications

  • Length: 10 in (254mm)
  • Weight: 2lb (908g)
  • Made in the USA
  • Aluminium Oxide Kit (TK 1) can be used for additional smoothing
  • Radius or Taper cut of semi-con shield
  • WS 9A Part No: 20700
  • WS 9C Part No: 28215
Ripley Utility Tool WS 9A & WS 9C Semi-Con Shield Shaving Tools - Product Range
Model Cable Outer Diameter Range Style of Cut Replacement Blade
WS 9A 0.55-2.25 in / 13.97-57.15mm Radius CB 40X
WS 9C 0.55-2.25 in / 13.97-57.15mm 0.25" (6.4mm) Taper CB 98

Replacement Blade: CB 40X (Part No.: 21715)

Replacement Blade: CB 98 (Part No.: 28201)
