Ripley Utility Tool WS 74 Semi-con Removal Tool

Ripley Utility ToolsRipley Tools

Underground Cable Preparation Tools

Ripley WS 74

Semi-Con Removal Tool​

Ripley WS 74 Semi-Con Removal Tool are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 74 is used for shaving 15-35kV cable with semi-con diameters from 12-50mm (0.47-1.97").

The WS 74 accurately removes semi-con within 24mm (0.945") of the jacket and a precision ground blade provides a 20º chamfer cut finish at the semi-con end.

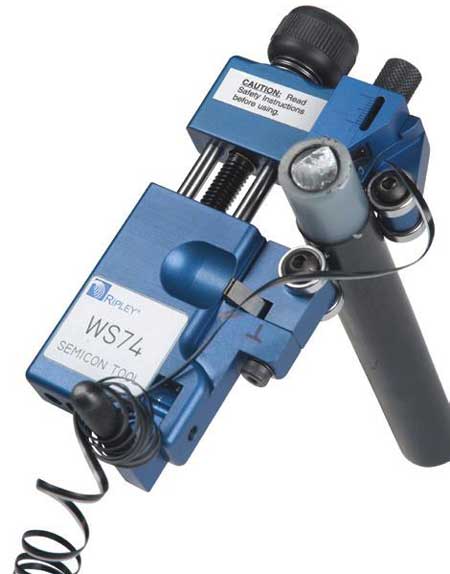

Pictured: Ripley Utility Tool WS 74 Semi-con Removal Tool

Ripley Utility Tool WS 74 Semi-con Removal Tool

Ripley Utility Tool WS 74 Semi-con Removal Tool Specifications

  • Length: 5.34 in (136mm)
  • Weight: 1.2lb (544g)
  • Precision blade adjustment in 0.1mm increments
  • Thumb switch to allow easy transition from spiral shave to square cut finish without requiring an additional stop device
  • Complete in plastic foam box with spare blade & easy blade replacement without the need for additional tools.
  • Replacement Blade - CB 277 (Part No: 43144)
  • Part No: 43140
