Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool

Ripley TC-1Ripley Tools

Secondary Distribution Cable Preparation & Stripping Tools

Ripley WS 71

Adjustable Cable End Stripping Tool

Ripley WS 71 adjustable end stripping tool for 600 volt secondary cable is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 71 has preset blade positions for 45, 50, 60, 80, 95 and 110mil insulation thickness suitable for 1/2 to 1.3in (12.7 to 33mm) OD (1/10 to 1000 MCM).

The tool is brightly coloured for easy visibility and is made from an impact resistant and lightweaight polymer material. The WS 71 has blades that are interchangeable with the WS 72.

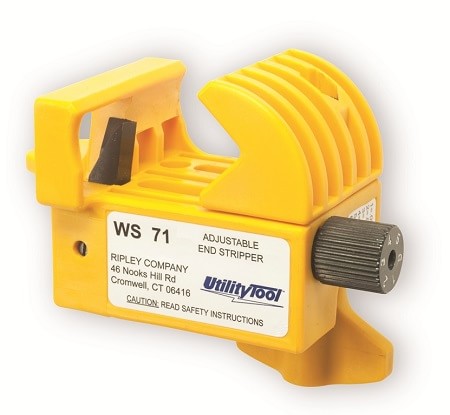

Pictured: Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool

Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool



Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool Specifications:

  • Dimensions: 5 x 4 x 2-1/2 in (127 x 102 x 64 mm)
  • Weight: 9.3 oz (263 g)
  • Function: Cable Range .5” to 1.3” (12.7 to 33 mm) OD
  • Part Number: 42120
  • Installed Blade CB7 (Part# 10302)
  • Made in the U.S.A


Video: Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool





Adobe Ripley Utility Tool WS 71 - Adjustable Cable End Stripping Tool

Adobe Ripley Utility Tool WS 71 - Instruction Sheet
