Underground Cable Preparation Tools

Ripley WS 7 & 8

URD Pencilling Tools

Ripley WS 7 & 8 URD Pencilling Tools are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Both the WS 7 & 8 pencilling tools are used for 5-35kV URD cables with XLPE, polyethylene and some EPR insulations with outer diameters from #8 to 1000MCM (10-500mm²).

The URD pencilling tools are fast smooth tapers with no conductor damage.

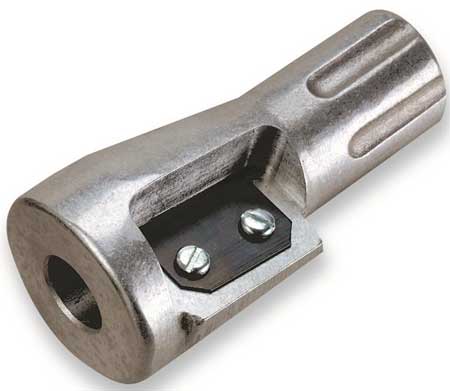

Pictured: Ripley Utility Tool WS 7 & WS 8 URD Pencilling Tools

Ripley Utility Tool WS 7 & WS 8 URD Pencilling Tools

Ripley Utility Tool WS 7 & WS 8 URD Pencilling Tools Specifications

  • Length: 5 in (127mm)
  • Weight: 1lb (454g)
  • Made in the USA
  • One tool for each cable/conductor size
  • Safety assured with a guarded cutting blade
  • Accepts SW 2 wrench for additional turning leverage
Ripley Utility Tool WS 7 & WS 8 URD Pencilling Tools - Product Range
Model Part No Max Cable Size Standard Nominal Taper Length Replacement Blade
WS 7A 16610 8 to 1000MCM 1.5" / 38.1mm CB 5A (Part No: 16601)
WS 8A 16620 8 to 1000MCM 1.5" / 38.1mm CB 5A (Part No: 16601)
WS 7 10900 8 to 350MCM 2.5" / 63.5mm CB 5 (Part No: 10901)
WS 8 11100 1/0 to 1000MCM 2.5" / 63.5mm CB 5 (Part No: 10901)
