Ripley Utility Tool WS 68 SNAP

Ripley Tools

Secondary Distribution Cable Preparation & Stripping Tools

Ripley WS 68 SNAP



Ripley WS 68 SNAP for 600 volt secondary cable is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 68 SNAP is designed to be used with a low or variable speed power drill and to reduce the wroking time and effort on repetitive stripping functions.

The tool uses adjustable strip stop with adjustment window allowing for an easy set up for precise strip lengths from 0.65in (15.9mm) to 2.5in (63.6mm).

WS 68 SNAP adds a bushing quick disconnect feature eliminating the need for a hex wrench

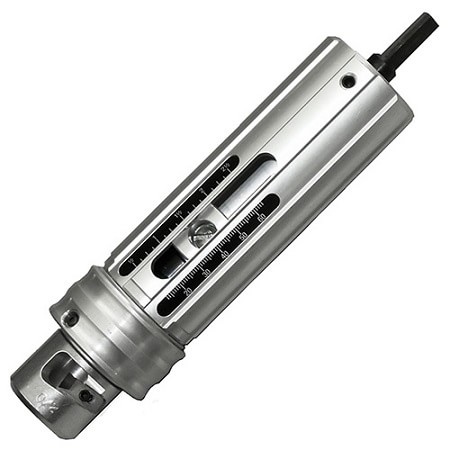

Pictured: Ripley Utility Tool WS 68 SNAP



Ripley Utility Tool WS 68 - Power Driven Cable End Stripper Specifications:

• Uses standard 2x2 and 4x4 bushings: From #6 AWG to 500 MCM (concentric, compressed, or compacted)
• Length: 8.5” (216 mm) w/ bushing
• Weight: 1.25 lbs (567.5 g) w/ bushing
• Part Number: 37955
• Drill Adapter(s) 3/8” (9.5 mm)
• Made in the U.S.A







Ripley Utility Tool WS 68 SNAP

Ripley Utility Tool WS 68 SNAP - Instruction Sheet

Ripley Utility Tool WS 68 SNAP - Sizing Chart
