Ripley Utility Tool WS 67 Metallic Sheath Removal Tools

Ripley Utility ToolsRipley Tools

Underground Cable Preparation Tools

Ripley WS 67

Metallic Sheath Removal Tool

Ripley WS 67 Metallic Sheath Removal Tools are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 67 is used for stripping glued LC and CLX shielding from cables in a helical cutting action. The WS 67 is used with cutters to snipp off excess shielding during the removal process.

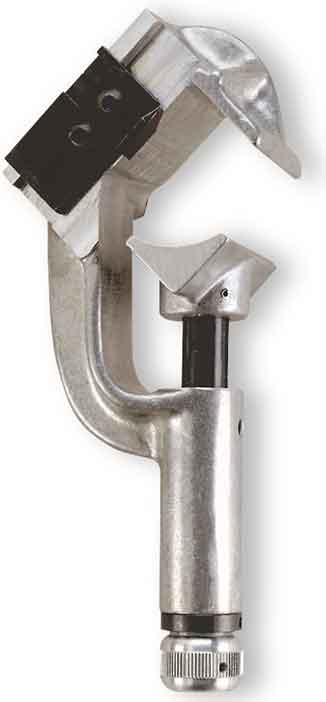

Pictured: Ripley Utility Tool WS 67 Metallic Sheath Removal Tools

Ripley Utility Tool WS 67 Metallic Sheath Removal Tools

Ripley Utility Tool WS 67 Metallic Sheath Removal Tools Specifications

  • Made in the USA
  • Replacement Blades: CB 98 Part No: 28201, CB 190 Part No: 28208
  • WS 67 Part No: 28215-1
  • WS 67A Part No: 28215-2
Ripley Ripley Utility Tool WS 67 Metallic Sheath Removal Tools - Product Range
Model Cable Outer Diameter Range Replacement Blade Length Weight
WS 67 0.55-2.25" / 14-57.2mm CB 98 10" / 254mm 2lbs / 908g
WS 67A 1.90-3.625" / 48.3-92.1mm CB 190 16.2" / 411mm 2.74lbs / 1244g

Video: Ripley Utility Tool WS 67 Metallic Sheath Removal Tools
