Ripley Utility Tool WS 5 End Stripper

Ripley Tools

Underground Cable Preparation Tools

Ripley WS 5

End Strippers​

Ripley WS 5 End Strippers are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 5 is used for precision stripping of insulation only or insulation and semi-con simultaneously and can strip XLPE, polyethylene & EPR insulation.

It is ideal for primary URD cable and can be used on cable outer diameters from 0.260-1.265 in (6.60-32.13mm), 600V to 35kV.

The WS 5 end stripper permits accurate preset stripping lengths of up to 4 in (101.60mm) and a guarded cutting blade prevents injury.

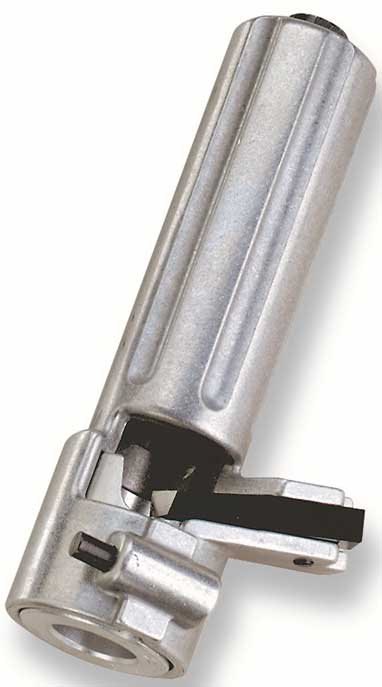

Pictured: Ripley Utility Tool WS 5 End Stripper

Ripley Utility Tool WS 5 End Stripper Specifications

• Length: 6 in (152mm)
• Weight: 1lb (454g)
• Made in the USA
• Accepts SW 2 ratchet wrench for leverage
• Stop bar with drill adapter can be purchased separately or comes supplied with WS 5DA. Metric stop bar also available
• Bushing insert fits over cable - presets cutting blade depth and can be changed easily and quickly.
• Model WS 5B available to strip from 3/4" up to 5 3/4" lengths (Part No: 37710)

Ripley Utility Tool WS 5 End Stripper - Product Range

Model	Part No	Insulation Materials	Insulation Thickness Max (mils)	Replacement Blade	Rotating Stop Bar
WS 5	10327	XLPE or EPR	400	CB 7-2	10346
WS 5 DA	10336	XLPE or EPR	400	CB 7-2	10337

Replacement Blade: CB 7-2 (Part No.: 10324)

Ripley Utility Tool WS 5 End Stripper - Instruction Sheet

Ripley Utility Tool WS 5 End Stripper - Sizing Sheet

Ripley Utility Tool WS 5 End Stripper - Spec Sheet
