Ripley Utility Tool WS 49 Airport Lighting Cable End Stripper & Penciller

Ripley Tools

Underground Cable Preparation Tools

Ripley WS 49

Airport Lighting Cable End Stripper/Penciller

Ripley WS 49 Airport Lighting Cable End Stripper/Penciller are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The WS 49 is used to taper cut #8, 5KV L-824 Type C airport lighting cable. The WS 49 creates 0.5 in (12.70mm) taper cuts with long lasting, guarded cutting blades

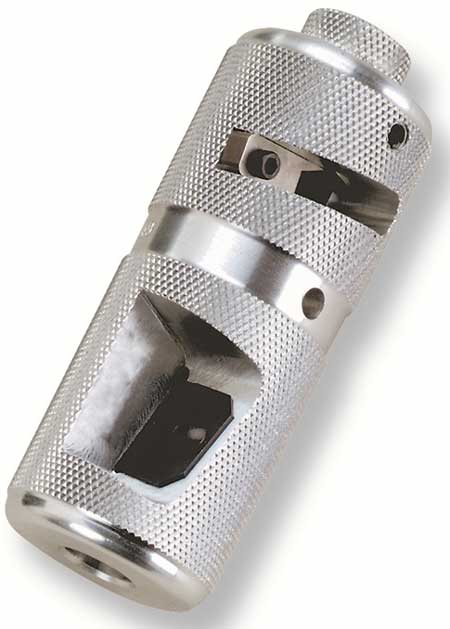

Pictured: Ripley Utility Tool WS 49 Airport Lighting Cable End Stripper & Penciller

Ripley Utility Tool WS 49 Airport Lighting Cable End Stripper & Penciller Specifications

• Length: 3.5 in (89mm)
• Diameter: 1.5 in (38mm)
• Weight: 1.5lb (680g)
• Made in the USA
• WS 49H available for #4 & #6 airport lighting cable
• End strip 0.75 in (19.05mm), pencils 0.5 in (12.70mm)
• Bushings (0.395", 0.420", 0.445", 0.490") compensate for variation in cable diameter
• WS 49 Part No: 27700
• WS 49H Part No: 27712
• Replacement blades: CB 6667, end strip (Part No: 19207), CB 94, pencil (Part No: 27702), CB 94H, pencil #4 & #6 airport lighting cable (Part No: 27714)

Ripley Utility Tool WS 49 Airport Lighting Cable End Stripper & Penciller
