Ripley WS 22A

Power Driven End Stripper

Ripley WS 22A power driven end stripper tool for 600 volt secondary cable is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 22A is designed for use with a low or variable speed power drill reducing time and effort for the user. The power driven end stripper has an adjustable strap for precise stripping of lengths from 1 in (25.4 mm) to 5.0 in (127 mm).

The tool has guarded blades for safety with a choice of drill drive or socket drive adaptors. The WS 22A can strip quickly even in cold climates and can precisely strip with no conductor damage.

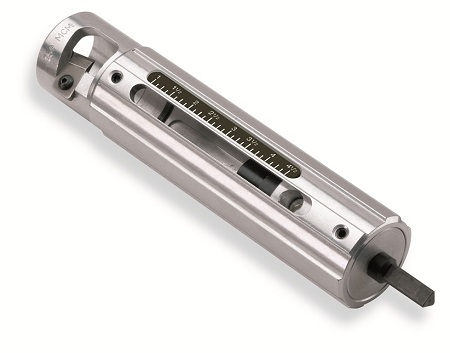

Pictured: Ripley Utility Tool WS 22A - Power Driven End Stripper

Ripley Utility Tool WS 22A - Power Driven End Stripper



Ripley WS 22A - Power Driven End Stripper Specifications:

  • For 600 volt cables, 1/0 AWG to 1000 MCM
  • Uses standard WS 22 bushings
  • Length without bushings: 7.44 in (189 mm)
  • Weight without bushings: 15 oz (426 g)
  • Part No: w/ 3/8” Drill Drive 12340, w/ 1/4” Hex Drive 12340-1, w/ 3/8” Square Socket Drive 12340-2, w/ 1/2” Square Socket Drive 12340-3
  • Made in the U.S.A
