Ripley Utility Tool WS 10 - Mid-Span Cable Stripper 26-46mm

Ripley Tools

Overhead Primary Distribution Cable Preparation Tools

Ripley WS 10

Mid-Span Cable Stripper 26-46mm

Ripley WS 10 mid-span cable stripper is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 10 is for 26-46mm cables O.D and comes with a choice of handles and has the ablity to operate on all tree wire and spacer cables. The mid-span cable stripper is made to suit specific cable size and is designed with hot stick operation.

The WS 10 is able to strip at the end or any point along the cable length to any length in one continuous operation.

Pictured: Ripley Utility Tool WS 10 - Mid-Span Cable Stripper 26-46mm

Ripley Utility Tool WS 10 Mid-Span Cable Stripper 26-46mm Specifications:

• Length: 15 in (381mm) end-to-end - WSRK 10: 12 in (305 mm)
• Weight: 4 lb (1.81 Kg)
• K models have two cutting blades
• Made in the U.S.A.

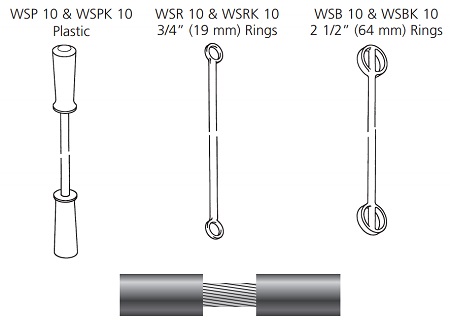

Pictured: Ripley WS 10 Series

Ripley WS 10 Series - Specifications

Models			Cable O.D.		Insulation Thickness	Replacement Blades
Plastic Handles	3/4” (19mm) Rings	2 1/2" (64mm) Rings	(inch)	(mm)	(mils)
WSP 10 Part# 11300	WSR 10  Part# 11335	WSB 10  Part# 11340	1.05 to to 1.80	26.67 to 45.72	< 200	CB 4
WSPK 2  Part# 11330	WSRK 10  Part# 11345	WSBK 10  Part# 11350	1.05 to to 1.80	26.67 to 45.72	≤200	CB 8-2B CB 162
