Ripley Utility Tool SCC 1 & SCC 2 Adjustable Semi-Con Chamfer Tools

Ripley Utility ToolsRipley Tools

Underground Cable Preparation Tools

Ripley SCC 1 & SCC 2

Adjustable Semi-Con Chamfer Tools​

Ripley SCC 1 & SCC 2 Adjustable Semi-Con Chamfer Tools are used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

The SCC 1 and SCC 2 are for chamfering semi-con and can be used with cables with outer diameters ranging from 0.760-2.00 in (19.30-50.80mm).

The SCC 1 and SCC 2 chamfer semi-con from 25 to 80 mils (0.635-2.032mm) in thickness and adjusts easily to fit cables. The blades are recessed to prevent injury and blade damage.

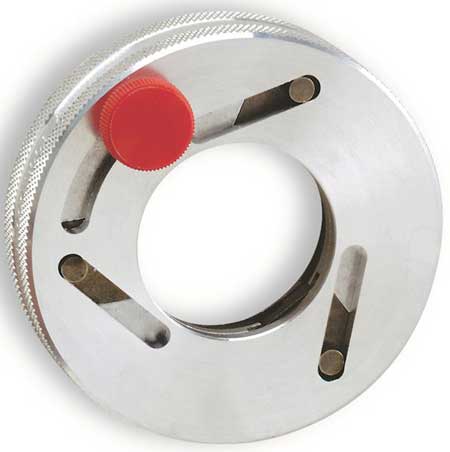

Pictured: Ripley Utility Tool SCC 1 & SCC 2 Adjustable Semi-Con Chamfer Tools

Ripley Utility Tool SCC 1 & SCC 2 Adjustable Semi-Con Chamfer Tools

Ripley Utility Tool SCC 1 & SCC 2 Adjustable Semi-Con Chamfer Tools - Product Range
Model Cable O.D Range (Over Insulation) Tool Diameter Weight Part No.
SCC 1 0.760-1.390 inches / 19.30-35.31mm 3 inches / 76.20mm 4oz / 113g 28224-1
SCC 2 1.400-2.000 inches / 35.56-50.80mm 3 1/2 inches / 88.90mm 5.5oz / 156g 28224-2

Replacement Blade: CB 140 (Part No.: 28230)
