Ripley Utility Tool ECS - Easy Cable Jacket Slitter

Ripley Tools

Overhead Primary Distribution Cable Preparation Tools

Ripley ECS

Easy Cable Jacket Slitter

Ripley ECS easy cable jacket slitter is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley ECS is a rugged, safe and simple cutter for slitting soft cable jackets of any diameter up to 6.3mm thick. The body is made from reinforced nylon with a single core. The ECS is a dual-grip tool meaning it can be used in either push or pull mode.

The easy cable jacket slitter has a precision-ground tool steel blade that is spring-loaded for additional safety. In addition the intergral V-channel blade guide is able to assist in tracking.

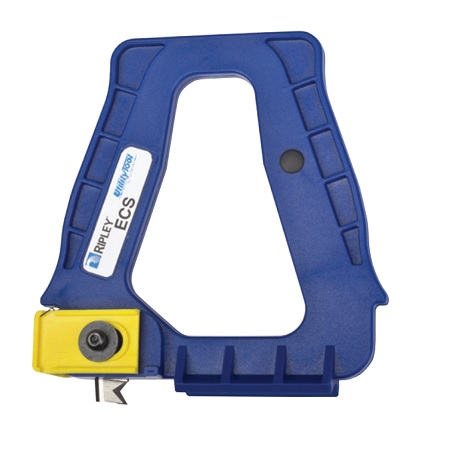

Pictured: Ripley Utility Tool ECS Easy Cable Jacket Slitter

Ripley ECS - Easy Cable Jacket Slitter Specifications:

• Dimensions: 5-1/8” L x 5-3/4 H x 1-3/8 W (130 mm x 146 mm x 35 mm)
• Weight: 8.2 oz (232.5 g)
• Part No.: 43270
• Replacement blade, CB 276 - Part No.: 43269

Ripley Utility Tool ECS - Easy Cable Jacket Slitter
