Ripley Utility Tool AJS - Adjustable Cable Jacket Slitter

Ripley Tools

Overhead Primary Distribution Cable Preparation Tools

Ripley AJS

Adjustable Cable Jacket Slitter

Ripley AJS adjustable cable jacket slitter is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley AJS is designed for longitudinal, circumferential (ringing), and mid-span splitting of corrugated aluminum or copper shield cables, medium-density polyethylene (MDPE), and high-density polyethylene (HDPE) conduits.

The adjustable jacket slitter has a very precise steel adjustable blade allowing slitting of covering of up to 1/4” (6.3mm) thick. In addition the blade is able to fully retract inside the bosy for storage.

The Ripley AJS has a lever that is also adjustable allowing the blade to dig-in in a mid-span application and the lever teeth are designed for soft and hard jacket/covering applications.

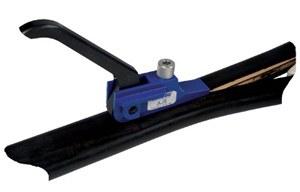

Pictured: Ripley Utility Tool AJS Adjustable Cable Jacket Slitter

Ripley AJS - Adjustable Cable Jacket Slitter Specifications:

• Longitudinal slitting of cable/duct ranging from 1/2” (38mm) to larger sizes
• Circumferential slitting of cable/duct ranging from 1-1/2” (38mm) to larger sizes
• Window cutout to access fibers inside duct ranging from 1-1/2” (38mm) to larger sizes
• Replacement blade: CB 276
• Part No.: 43265
• Dimensions: 8.7 x 2 x 1.5 in ( 221 x 52 x 39 mm)
• Weight: 11 oz (318g)

Ripley Utility Tool AJS - Adjustable Cable Jacket Slitter
