Ripley Utility Tool 4x4 PLUS - Cable End Stripper

Ripley Tools

Secondary Distribution Cable Preparation & Stripping Tools

Ripley 4x4 PLUS

Cable End Stripper

Ripley 4x4 PLUS cable end stripper for 600 volt secondary cable is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley 4x4 PLUS cable end stripper can strip 45 mil to 110 mil secondary insulations and is effective (strips quickly) even in colder climates.

The cable end stripper has guarded blades for safety with a choice of square cut or chamfer cut both providing precision stripping with no conductor damage.

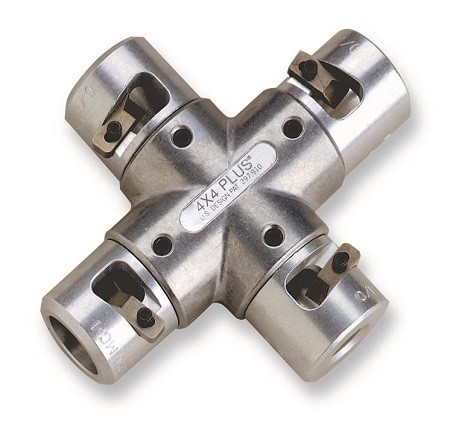

Pictured: Ripley Utility Tool 4x4 PLUS - Cable End Stripper



Ripley 4x4 PLUS - Cable End Stripper Specifications:

• Cutting heads for #6 AWG to 500 MCM conductors (concentric, compressed or compacted)
• Bushings change easily with hex wrench
• Extensions available to strip additional 1.5” (38 mm)
• 4 x 4: Length w/ bushings: 4.5 x 5 in (114 x 127 mm); weight: 14 oz (397 g)
• 4x4 Body Part No.: 36001H
• Made in the U.S.A
