Ripley 2x2 PLUS

Cable End Stripper

Ripley 2x2 PLUS cable end stripper for 600 volt secondary cable is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley 2x2 PLUS cable end stripper can strip 45 mil to 110 mil secondary insulations and is effective (strips quickly) even in colder climates.

The cable end stripper has guarded blades for safety with a choice of square cut or chamfer cut both providing precision stripping with no conductor damage.

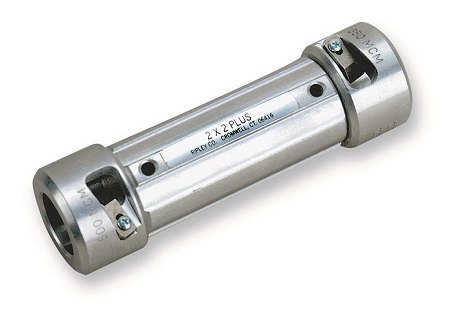

Pictured: Ripley Utility Tool 2x2 PLUS - Cable End Stripper

Ripley Utility Tool 2x2 PLUS - Cable End Stripper



Ripley 2x2 PLUS - Cable End Stripper Specifications:

  • Cutting heads for #6 AWG to 500 MCM conductors (concentric, compressed or compacted)
  • Bushings change easily with hex wrench
  • Extensions available to strip additional 1.5” (38 mm)
  • 2 x 2: Length w/ bushings: 5.75 in (146 mm); weight: 8 oz (227 g)
  • 2x2 Body Part No.: 36101H
  • Made in the U.S.A


Video: Ripley Utility Tool 2x2 PLUS - Cable End Stripper

Adobe Ripley Utility Tool 2x2 PLUS - Cable End Stripper

Adobe Ripley Utility Tool 2x2 PLUS - Cable End Stripper - Instruction Sheet

Adobe Ripley Utility Tool 2x2 PLUS - Cable End Stripper - Sizing Chart
