Cable Preparation Tool Kit

The Nexans Utility Tool Kit Case 82320 contains all the necessary tools needed to prepare both bonded and peelable semi-conductive screened cores. The cable jointing tools have been selected to ensure the preparation of medium voltage power cables can be easily undertaken. Nexans 82320 kit is supplied in a hard wearing, foam filled case, protecting the contents from damage. Nexans 82320 Tool Kit is ideal for medium voltage cable jointers needing to prepare and strip power cables prior to the installation of Nexans Euromold screened separable connectors.



Nexans Ripley Utility Tool Kit Case - 82320 - Cable Preparation Kit

Nexans 82320 Utility Tool Kit Case includes the following:

  1. WS64 Adjustable cable stripper
  2. QC1 Quick clamp
  3. WS76 Semi-con shaving tool
  4. SCS Semi-con scoring tool
  5. GBKG05-05 Chamfering tool



Nexans 82320 Utility Tool Kit Case Features:

Weight of complete kit: 4.8kg

Length: 44cm Height: 31cm Width: 11cm

* The individual Nexans tools can be ordered separately.



1. Ripley Utility Tool WS64 Cable Outer Sheath & XLPE Cable Insulation Stripping Tool

The Ripley WS 64 is a universal high voltage cable jointers tool for cable end tripping or mid span stripping of high voltage power cable outer sheath jackets - cable end stripping and mid-span cable stripping is achieved with different interchangeable blades. Suits 12.7mm-63.5mm outside cable diamters, ideal for cable jointers splicing, terminating and jointing 11kV and 33kV power cables. Dual purpose HV jointers tool strips outer cable sheath/jacket and HV insulation in simple one-tool operation.

Nexans Utility Tool Kit Case 82320 - Ripley WS64 Cable Stripping ToolRipley Utility Tool WS64 Cable Stripping Tool Features:

  • Ability to strip secondary and primary cable insulations
  • Quickly and easily adjusts to cable size with spring loaded “trigger-action” jaw
  • Micro adjustable blade allows accurate setup for a variety of insulation thicknesses
  • Easy and efficient operation with minimal effort
  • Compact design for tighter work space requirements
  • Rugged, all metal body design
  • Length: 8 in (200 mm)
  • Weight: 1.9 lb. (860 g)



2. Ripley Utility Tool QC-1 Quick Clamp

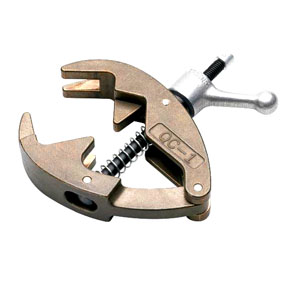

Nexans Utility Tool Kit Case 82320 - Ripley QC-1 Quick Cable Clamp

The Ripley QC-1 Quick Clamp is used as a stop for jacket stripping operations. The QC-1 clamp is time efficient with its spring loaded jaws which enable fast tightening onto cables.

Ripley Utility Tool QC-1 Quick Cable Clamp Features:

  • Suitable for cable sizes from 0.50” (12.7 mm) up to 2.5” (63.5 mm) O.D.
  • Rugged, bronze casting design for years of use.
  • Length: 7” (178 mm)
  • Weight: 3 lb. 4 oz (875 g)

Video : Ripley Utility Tool Quick Clamp (QC-1) : Medium voltage cable preparation tool designed for "Quick action" cable clamp for use as a stop for jacket stripping operations. Spring loaded jaws allow fast tightening onto cables, saving the cable jointer valuable time.

3. Ripley Utility Tool WS76 Bonded Semi-Con Scoring Tool

Ripley WS76 semi-con scoring tool shaves bonded semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cable. The Ripley WS76 is designed to shave bonded semi-con and shaves 11kV, 15kV, 33kV and 35kV screened power cables. The WS76 accurately removes semi-con shield shield within 25mm spiral action in forward position. By reversing the shaving tool, accurately removes semi-con shield within 7mm (spiral action). The thumb switch on the semi-con scoring tool allows cable jointers to form a spiral to square cut without requiring a stop device

Ripley Utility Tool WS76 Bonded Semi-Con Scoring Tool Features:

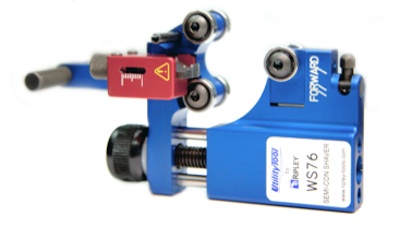

  • Nexans Utility Tool Kit 82320 - Ripley WS76 Semi-Con Shaving ToolDiameter range of bonded screen is 0.71"-2.36" (18mm-60mm)
  • Accomodates a max semi-con thickness of 2.4mm for high voltage power cables
  • Easy cutting blade replacement
  • Winding pin to remove chip
  • Self feeding with stop position - 2 speeds forward and 2 speeds reverse
  • Precision self feeding bearings guide
  • Robust, high quality steel and aluminium construction
  • Size: 3.44 in (87.3mm) x 5.52 in (140.3mm) x 2.03 on (51.7mm)
  • Weight: 1lb (454g)



4. Ripley Utility Tool SCS Semi-Con Scoring Tool

The SCS semi-con scoring tool is used to make precision score depth cuts on high voltage power cables with strippable semi-con for the purpose of proper semi-con removal. The SCS semi-con scoring tool accomodates cable ranges of 8mm to 45mm and has a scoring depth of up to 4mm. The compact design of the SCS tool enables easy operation and storage.

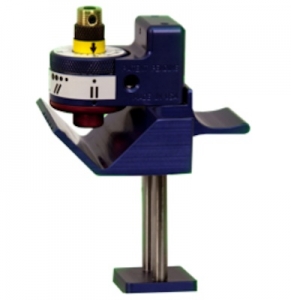

Ripley Utility Tool SCS Semi-Con Scoring Tool Features:

  • Easy and precise blade adjustment
  • Tri-action scoring capability: ring cut, spiral cut, longitudinal cut
  • 2” envelope on larger cables
  • Four (4) spiral cut settings for optimal chip width
  • Micro indexing blade depth adjustment in 0.05 mm (.002”) increments.
  • Blade squaring adjustment feature.
  • Allows for easy blade change.
  • Easily mounts on the cable.
  • Length: 3.28in (83.30 mm)
  • Weight: 0.61lb (0.27kg)



5. Ripley Utility Tool GBKG05-05 Chamfering Tool

The GBKG05-05 Chamfering tool is a universal tool used for preparing every cable insulation. The Ripley chamfering tool is designed for a complete range of diameters of medium voltage cables.

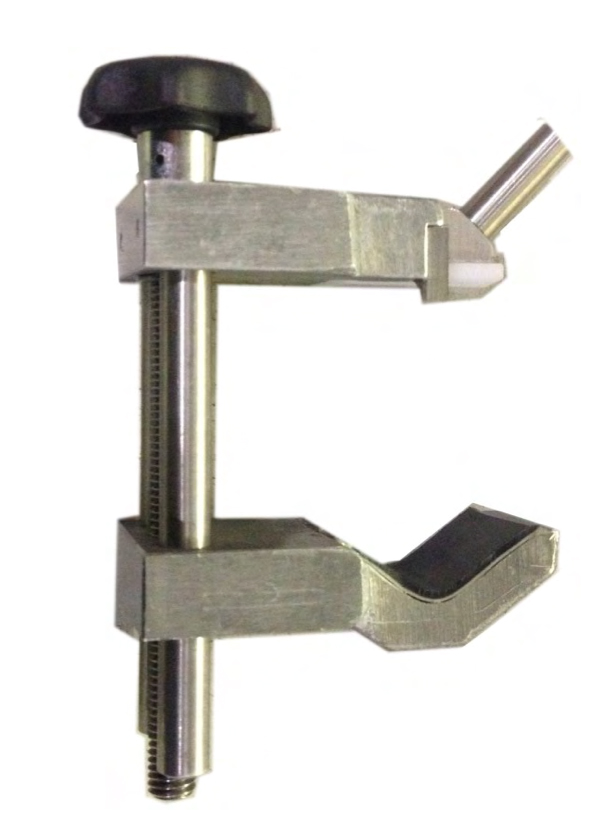

Nexans Utility Tool Kit Case 82320- Ripley Utility Tool GBKG05-05 Chamfering Tool

Ripley Utility Tool GBKG05-05 Chamfering Tool Features:

  • Cuts the sharp edge of the removed insulation.
  • Prevents the damage of the push-on parts.
  • Easy to use.
  • Cable diameter Max. 60 mm Ø
  • Length: 4.92 in (125 mm) x Width: 3.74 in (95 mm) x Depth: 1.57 in (40 mm)
  • Weight: 25.3 g (0.056 lb.)

Ripley Utility Tool Cable Preparation Tools





Ripley Utility Tool cable preparation tools are used to splice and terminate cable for the Power Transmission and Distribution, electrical construction and maintenance industries. All tools are designed and manufactured to meet specific cable application needs, including accurate removal of insulation, semi-conductive sheathing, protective jacketing and other materials to produce consistent, uniform preparation of cable ends for splicing and termination.
