Prysmian JEM Resin Jointing Kits JST185CC up to 4 Core 185sqmm

Prysmian JEM Resin Joints

JEM Resin Cable Jointing Kits

Prysmian JST185CC JEM

Prysmian JEM Resin Cable Jointing Kits JST185CC up to 4 Core 185sqmm XLPE/SWA BS5467, BS6346 and IEC502 Cables.

• Minimum Cable OD 40mm
• Maximum Cable OD 65mm

Prysmian Joints - Features & Benefits

• Suitable for LV cable jointing of copper and aluminium conductors
• Large, transparent, high impact resistant cable joint shells
• Large internal working space for cable jointer access
• Simple precision flange sealing system
• Mechanical connectors included, no special crimp tooling required
• Armour bonds included for earthing SWA armoured and wire braid cables
• Cable joints tested and approved to BS EN 50393 & ENA ER C81

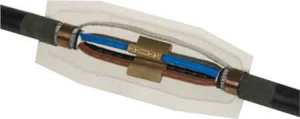

Pictured : Prysmian JST185CC Cable Joint with Mechanical Connectors

Prysmian JEM Resin Joints - 2 two part easy flow JEM resin is provided as standard, suitably packed in clear laminate sachets offering a completely enclosed and visible resin mixing system for low voltage power cable jointing.

Prysmian’s cast resin Universal Straight (JSTCC) cable joints are the ideal method for cable joining polymeric (XLPE and EPR) industrial cables.

Prysmian JEM Resin Jointing Kits JST185CC up to 4 Core185sqmm
