CATU Lockout / Tagout Solutions - Multiple Lockers

CATU Lockout / Tagout Solutions

CATU Multiple Lockers

CATU Electrical Safety Equipment





CATU multiple lockers allows several users to lock a single item of equipment. Operation can only be resumed after the last padlock has been removed. CATU lockout / tagout multiple lockers range includes the following:

CATU Lockout / Tagout Multiple Lockers - Flexible Models

Nylon (non-conductive)

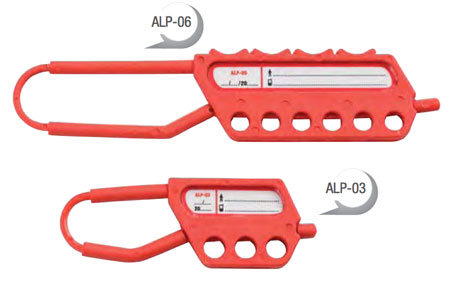

Pictured: CATU Lockout / Tagout Multiple Lockers - Flexible Models

CATU Reference No	Shackle Height	Number Of Locks	Hole Diameter	Locker Length	Weight
CATU ALP-03	50mm	3	9mm	105mm	20g
CATU ALP-06	80mm	6	9mm	183mm	30g



CATU Lockout / Tagout Multiple Lockers - All-Plastic Models

Nylon (non conductive). Label with 'DANGER' warning and identification of the person carrying out the work. Holds 4 padlocks.

Pictured: CATU Lockout / Tagout Multiple Lockers - All-Plastic Models

CATU Reference	Shackle Height	Shackle Diameter	Number Of Locks	Hole Diameter	Locker Length	Weight
CATU ALP-4/3	46mm	3mm	4	8mm	108mm	35g
CATU ALP-4/6	46mm	6mm	4	8mm	108mm	35g



CATU Lockout / Tagout Multiple Lockers - Universal Model

Steel cable coated in non-conductive PVC. Maximum weight supported: 100kg. 'DANGER' warning label.

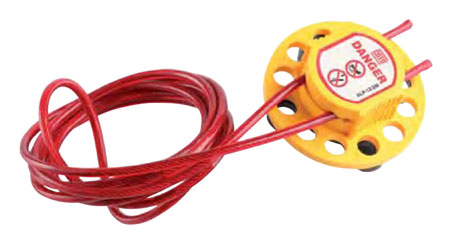

Pictured: CATU Lockout / Tagout Multiple Lockers - Universal Model

CATU Reference	Cable	Number Of Locks	Hole Diameter	Weight
CATU ALP-12/2M	Ø4 Lg2m	12	9mm	130g

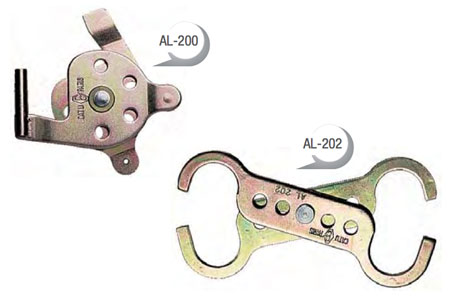

Pictured: CATU Lockout / Tagout Multiple Lockers - Metal Models

CATU Reference	Dimensions	Description	Weight
CATU AL-200	100mm x 60mm x 10mm	EDF type A	150g
CATU AL-200	165mm x 50mm x 12mm	EDF type B	200g



Safety Padlock

CATU Reference	Shackle Height	Shackle Length	Weight
CATU AL-203*	6mm	50mm	180g

*Key no111

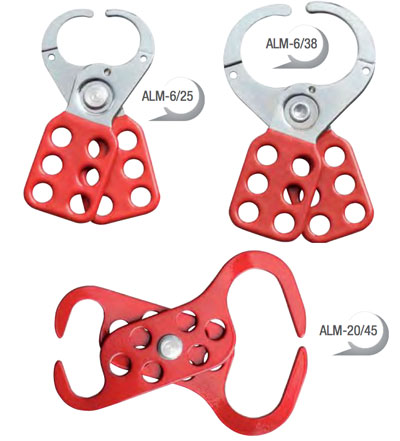

Pictured: CATU Lockout / Tagout Multiple Lockers - HASP Models

CATU Reference Number	Clamping Diameter	Number Of Locks	Hole Diameter	Length	Weight
CATU ALM-6/25	25mm	6	9mm	112mm	95g
CATU ALM-6/38	38mm	6	9mm	125mm	110g
CATU ALM-20/45	20mm 31mm	6	9mm	138mm	120g



CATU Lockout / Tagout Multiple Lockers - Steel Shackle Model

High-strength steel shackle and body. Label with 'DANGER' warning and identification of the person carrying out the work. Holds 6 padlocks.

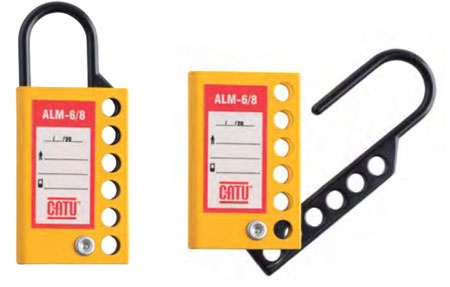

Pictured: CATU Lockout / Tagout Multiple Lockers - Steel Shackle Model

CATU Reference	Shackle Height	Shackle Diameter	Hole Diameter	Length	Weight
CATU ALM-6/8	25mm	5mm	8mm	115mm	80g
