Signalling Cable Joint Kits for Lineside Multicore Cables (NR Network Rail PADS)

SPS Signalling Cable Joint KitsSignalling Cable Joint Kits

Lineside Multicore Signalling Cable Joint Kits

Network Rail (NR) PADS Approved Cable Jointing Kits

SPS heat shrink cable joint kits are available for jointing an extensive range of rail signalling cables :

  • Signalling cable type A1, A2, A3 : LS0H cables for free wiring in relay rooms, signal boxes, REBs and location cases
  • Signalling cable type B1, B2 : PCP-sheathed cables used between equipment boxes, signal boxes, relay rooms and location cases
  • Heavy-duty signalling cable type C1, C2, C3 : HDPCP-sheathed cables for tails; type C3 for TPWS applications
  • Signalling cable type D1, D2 : LS0H cables for Type B1 and B2 applications in tunnels and underground locations
  • Signalling cable type E1, E2, E3 : LS0H cables for Type C1, C2 and C3 applications in tunnels and underground locations; Type E3 for TPWS applications
  • Axle counter cable: Solid interconnecting cable in axle counter systems; produced to NR/L2/SIG/30060

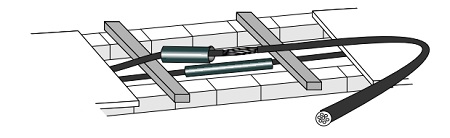

Pictured: Signalling Cable Joint Kits for Lineside Multicore Cables (NR Network Rail PADS)

Signalling Cable Joint Kits for Lineside Multicore Cables (NR Network Rail PADS)

Signalling Cable Joint Kits for Lineside Multicore Cables - Specification
Part Ref PADS Joint Description Size (mm²)
SPS 071 54/15870 7 core 1.5 joint
SPS 071 54/15870 10 core 0.75-1.5 joint
SPS 071 54/15870 12 core 0.75-1.5 joint
SPS 072 54/15871 19 core 0.75-1.5 joint
SPS 073 54/15874 27 core 0.75-1.5 joint
SPS 074 54/15872 37 core 0.75-1.5 joint
SPS 075 54/37009 48 core 0.75-1.5 joint
SPS 076 54/15880 61 core 0.75-1.5 joint
SPS 703 54/37120 7 core 2.5 joint
SPS 703 54/37120 10 core 2.5 joint
SPS 703 54/37120 12 core 2.5 joint
SPS 704 54/37120 19 core 2.5 joint
SPS 705 54/37120 27 core 2.5 joint
SPS 706 54/37123 37 core 2.5 joint
SPS 707 54/37124 48 core 2.5 joint
