Power Cable Joint Kits for BR880 Trackside Cables (NR Network Rail PADS)

SPS Power Cable Joints

Rail Power Cable Jointing Kits, BR880 Cable

BR880 Power Cable Joint Kits

NR Network Rail Approved



Trackside Signalling Aluminium Power Cables BR880 Specification

  • Application: BR880 solid sector shaped conductors for trackside signalling power supplies.
  • Cable Standards: BR880, BS5467, BS6346
  • Cable Conductor: Sector shaped solid aluminium
  • Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655 or PVC (Polyvinyl Chloride) Type TI 1 to BS7655
  • Separator: PETP (Polyethylene Terephthalate)
  • Cable Sheath: PVC (Polyvinyl Chloride) Type 9 to BS7655
  • Cable Sheath Colour: Black
  • Voltage Rating: 600/1000V
  • Limited Use: Distribution of Signalling Power only (Not suitable for general signalling use)
  • Temperature Rating: +70˚C (BS6346) or +90˚C (BS5467)
Power Cable Joint Kits for BR880 Trackside Cables (NR Network Rail PADS) - Specification
Part Ref PADS Joint Description
SPS 711 54/37095 2 core 16mm² Type BR880 Cable
SPS 712 54/37096 2 core 25mm² Type BR880 Cable
SPS 713 54/37097 2 core 35mm² Type BR880 Cable
SPS 714 54/37098 2 core 50mm² Type BR880 Cable
SPS 715 54/37099 2 core 70mm² Type BR880 Cable
SPS 716 54/37100 2 core 95mm² Type BR880 Cable

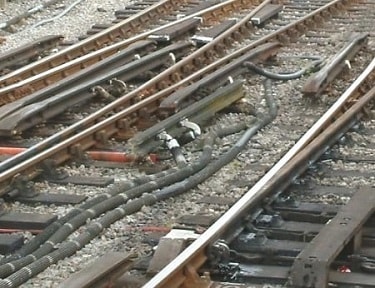

Pictured : Power Cable Joint Kits for BR880 Trackside Cables (NR Network Rail PADS)

Power Cable Joint Kits for BR880 Trackside Cables (NR Network Rail PADS)


Cable Core Identification:

Effective 31 March 2006
2 Cores: Brown, Blue
4 Cores: Blue, Brown, Black, Grey

Adobe Power Cable Joint Kits for BR880 Trackside Cables (NR Network Rail PADS)
