Trackside Aluminium Power Cable

BR880 Cable Standards & Approvals











BR880 aluminium cable with solid sector shaped conductors for trackside signalling power supp

lies is available in 2 core and 4 core, 16sqmm, 25sqmm, 35sqmm, 50sqmm, 70sqmm and 95sqmm.

Aluminium trackside signalling power cable with XLPE insulation, 600/1000 volts is specified for the distribution of signalling power (not general signalling applications).

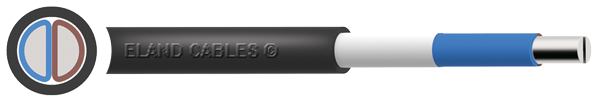

Pictured: Aluminium Trackside Signalling Power Cables BR880

Aluminium Trackside Signalling Power Cables BR880


Trackside Aluminium Power Cable - Specification

  • Cable Standards - BR880, BS5467, BS6346
  • Cable Conductors - Sector shaped solid aluminium
  • Cable Insulation - XLPE
  • Cable Sheath - PVC Type 9 to BS7655
  • Cable Sheath Colour - Black
  • Cable Voltage - 600/1000volts
  • Core Identification - 2 Cores : Brown/Blue - 4 Cores : Blue, Brown, Black Grey
Aluminium Trackside Signalling Power Cables BR880 - Dimensions
Part No Rail Catalogue Number  No. of Cores x Nominal Conductor Area # x mm²   Nominal Thickness of Insulation mm  Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Weight kg/Km
A3TR016ALI  006/142419  2 x 16 1.0  1.8  14.3  420
A3TR025ALI  006/142519  2 x 25 1.2 1.8  16.6  455
A3TR035ALI  006/142609 2 x 35 1.2  1.8  18.0  525
A3TR050ALI  006/142629  2 x 50 1.4 1.8  20.4  620
A3TR070ALI  006/142639  2 x 70 1.4 1.9 22.8  840
A3TR0295ALI  006/142644  2 x 95 1.6 2.0 26.2  1020
A3TR0470ALI  006/151469  4 x 70 1.4 2.0  30.6  1750
A3TR0495ALI  - 4 x 95 1.6 2.2 35.5  2100


Note - aluminium conductors 10-35sqmm circular only. For single core cables, four sectoral shaped conductors may be assembled into a single circular conductor.
