CATU MT-1910 Short Circuiting & Earthing Kit (20KA)

CATU Portable Earthing & Short Ciruiting

MT-1910 Short-Circuiting Kits

For Installation On Permanent Fixed Points

The CATU MT-1910 Short Circuiting & Earthing Kit is a 20KA IEC short-circuiting and earthing systems for MV substations.

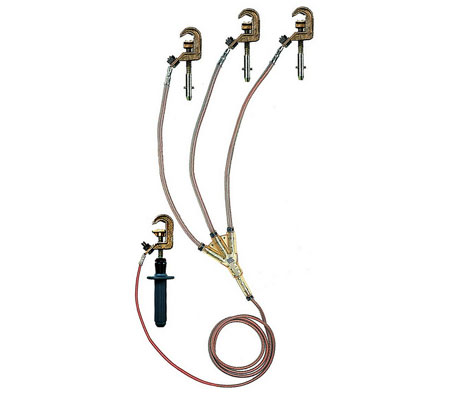

Pictured: CATU MT-1910 Short Circuiting & Earthing Kit (20KA)

CATU MT-1910 Short Circuiting & Earthing Kit (20KA) - Product Specification

CATU Part Ref	Rating	Installation On Fixed Points	Composition	Connection Set
CATU MT-1910	20kA/1s	Diameter - 20mm, CATU MT-2951 range	3 earth clamps - MT-1911-E, 1 MT-1911	3 cables 95mm², 1 earth cable 35mm²



CATU MT-1910 Short Circuiting & Earthing Kit (20KA)
