Stripping Tool for Peelable Semi-Con Screens

Cable Jointing Tools

Semi Con Stripping & Shaving Tools

Boddingtons Electrical

Boddingtons 244410

16-41mm Application Range



Cable Stripping Tools for removing and stripping peelable ("easy-strip") semi-conductive screens from high voltage (HV) power cables, including 11kV and 33kV cables.


Pictured: Stripping Tool for Peelable Semi-Con Screens



Peelable Semi-Con Screen Removal Tools for HV Cables - Benefits

• The cable jointers tool is safe and easy to use and allows the HV jointer to strip the HV semi-conductive ("semi con") layer in different shapes : round stripping, longitudinal stripping and spiral stripping. To facilitate the different operations of positioning, stripping, rotating and removing, the stripping tool is provided with suitable holding points.



• The direction of the semi-con cutting blade can be adjusted also when the stop-clamp has already been fixed onto the high voltage cable.



• The incision depth can be adjusted from 0 to 0.9mm witn 0.1mm steps without the need for additional jointers tools.

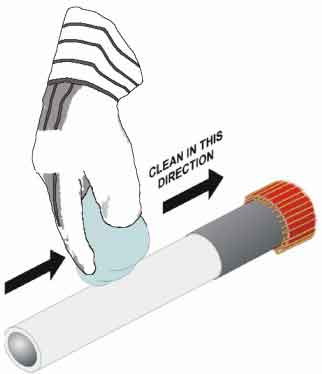

33kV Jointing. Clean the surface of the XLPE insulation with a fresh cable cleaning wipe. Always move the cleaning wipe from the cable end toward the semi-conducting screen, so that any fine particles remain on the edge of the screen, not on the XLPE cable insulation.

Jointers Tools - Stripping Tool for Peelable Semi-Con Screens - Boddingtons 244400

Stripping Polymeric Single Core HV Cables (Bonded & Strippable Screens) - Eon Guide
