High Voltage Motor Connectors 6.6kV - 13.8kV

Pfisterer Connex high voltage motor connectors permit quick changeover of electric motors providing a metal enclosed, intrinsically safe high voltage cable termination. The Connex motor connectors are ATEX certified high voltage electric motor connections and available for 6.6kV-11kV hazardous areas, Zone 1 and Zone 2. The Connex system is easily installed in place of the motor connection box.
Pfisterer Connex High Voltage Motor Connectors - CMA-MV-CONNEX
Pfisterer CMA Connex Connectors for High Voltage Motors Features

  • Metal-enclosed
  • Fully-insulated
  • Touchproof
  • High short-circuit protection
  • Suitable for outdoor use
  • Separable into two parts
  • Degree of protection IP 66
  • Up to 11 kV Ex

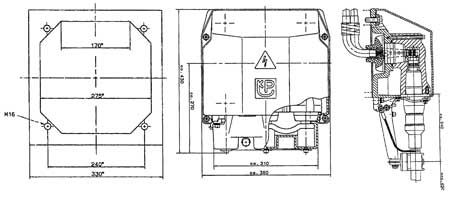

Pfisterer Motor Connectors - Connex CMA / CMS
