Prysmian Bicon U375AB05

Trefoil Cable Cleats Suitable for Cable Diameters 90-118mm

Prysmian Bicon U375AB05 Dutchclamp trefoil cable cleats are suitable for cables in trefoil groups with cable diameters of 90-118mm for mounting low, medium and high voltage cables.

Technical Data

• Approved to BS EN 61914 :2009 cat 6.4.4
• Suitable for a maximum fault level generating 30kN of force
• Size 5 (90-118mm) = 51kA RMS 132kA peak with cleats at 900mm intervals

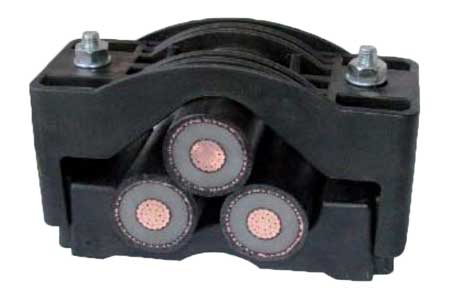

Pictured: Prysmian Bicon U375AB05 Dutchclamp

Trefoil Cable Cleat - 90-118mm Cable

Prysmian Bicon U375AB05 Dutchclamp Trefoil Cable Cleats - Product Specification

Dutchclamp Product Number	Cable Diameter AØ (mm)		L​ (mm)	B (mm)	I (mm)	Fixing d Ø (mm)	H1 (mm)	H2 (mm)	h (mm)	a (mm)
	Min	Max
U375AB05	90	118	321	100	270	15.5	172	27	89	33

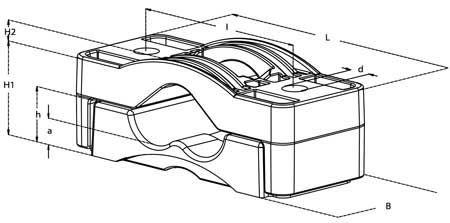

Pictured: Prysmian Bicon U375AB05 Dutchclamp Trefoil Cable Cleats - Dimension Illustration

Dutchclamps

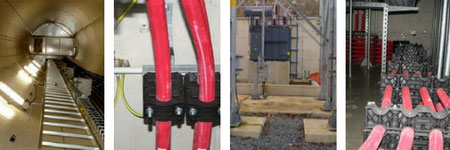

Dutchclamp cable clamps and cable blocks are installed to secure low, medium and high voltage power cables to cable risers, tunnels, shafts and substation cable containment.



Prysmian Bicon U375AB05 Dutchclamp Trefoil Cable Cleat - 90-118mm
