Prysmian Bicon U375AB04 Dutchclamp Trefoil Cable Cleat - 69-90mm

Dutchclamp Cable Cleats

Prysmian Bicon U375AB04

Trefoil Cable Cleats Suitable for Cable Diameters 69-90mm

Prysmian Bicon U375AB04 Dutchclamp trefoil cable cleats are suitable for cables in trefoil groups with cable diameters of 69-90mm for mounting low, medium and high voltage cables.

Technical Data

• Approved to BS EN 61914 :2009 cat 6.4.4
• Suitable for a maximum fault level generating 30kN of force
• Size 4 (69-90mm) = 44kA RMS 114kA peak with cleats at 900mm intervals

Pictured: Prysmian Bicon U375AB04 Dutchclamp

Trefoil Cable Cleat - 69-90mm Cables

Prysmian Bicon U375AB04 Dutchclamp Trefoil Cable Cleats - Product Specification

Dutchclamp Product Number	Cable Diameter AØ (mm)		L​ (mm)	B (mm)	I (mm)	Fixing d Ø (mm)	H1 (mm)	H2 (mm)	h (mm)	a (mm)
	Min	Max
U375AB04	69	90	266	90	215	15.5	130	27	72	31

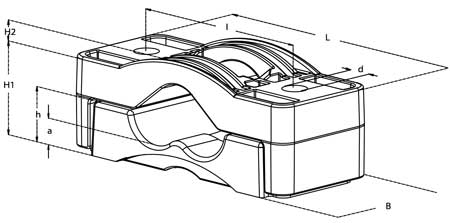

Pictured: Prysmian Bicon U375AB04 Dutchclamp Trefoil Cable Cleats - Dimension Illustration

Dutchclamps

Dutchclamp cable clamps and cable blocks are installed to secure low, medium and high voltage power cables to cable risers, tunnels, shafts and substation cable containment.



Prysmian Bicon U375AB04 Dutchclamp Trefoil Cable Cleat - 69-90mm
