Prysmian Bicon U375AB02 Dutchclamp Trefoil Cable Cleat - 38-51mm

Dutchclamp Cable Cleats

Prysmian Bicon U375AB02

Trefoil Cable Cleats Suitable for Cable Diameters 38-51mm

Prysmian Bicon U375AB02 Dutchclamp trefoil cable cleats are suitable for cables in trefoil groups with cable diameters of 38-51mm for mounting low, medium and high voltage cables.

Technical Data

• Approved to BS EN 61914 :2009 cat 6.4.4
• Suitable for a maximum fault level generating 30kN of force
• Size 2 (38-51mm) = 33kA RMS 85kA peak with cleats at 900mm intervals

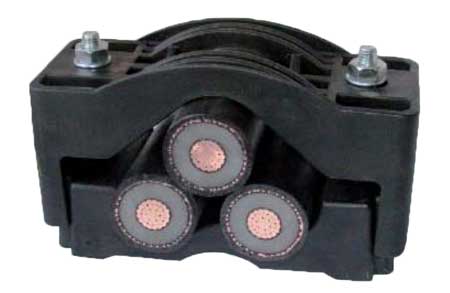

Pictured: Prysmian Bicon U375AB02 Dutchclamp

Trefoil Cable Cleat - 38-51mm Cables

Prysmian Bicon U375AB02 Dutchclamp Trefoil Cable Cleats

Product Specification

Dutchclamp Product Number	Cable Diameter AØ (mm)		L​ (mm)	B (mm)	I (mm)	Fixing d Ø (mm)	H1 (mm)	H2 (mm)	h (mm)	a (mm)
	Min	Max
U375AB02	38	51	195	80	145	15.5	84	16	45	20

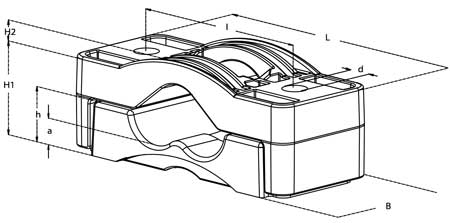

Pictured: Prysmian Bicon U375AB02 Dutchclamp Trefoil Cable Cleats - Dimension Illustration

Dutchclamps

Dutchclamp cable clamps and cable blocks are installed to secure low, medium and high voltage power cables to cable risers, tunnels, shafts and substation cable containment.
