Prysmian Bicon U375AB01 Dutchclamp Trefoil Cable Cleat - 27-38mm

Dutchclamp Cable Cleats

Prysmian Bicon U375AB01

Trefoil Cable Cleats Suitable for Cable Diameters 27-38mm

Prysmian Bicon U375AB01 Dutchclamp trefoil cable cleats are suitable for cables in trefoil groups with cable diameters of 27-38mm for mounting low, medium and high voltage cables.

Technical Data

• Approved to BS EN 61914 :2009 cat 6.4.4
• Suitable for a maximum fault level generating 30kN of force
• Size 1 (27-38mm) = 28kA RMS 72kA peak with cleats at 900mm intervals

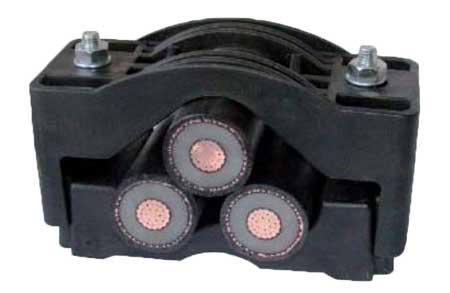

Pictured: Prysmian Bicon U375AB01 Dutchclamp

Trefoil Cable Cleat - 27-38mm Cables

Prysmian Bicon U375AB01 Dutchclamp Trefoil Cable Cleats

 Product Specification

Dutchclamp Product Number	Cable Diameter AØ (mm)		L​ (mm)	B (mm)	I (mm)	Fixing d Ø (mm)	H1 (mm)	H2 (mm)	h (mm)	a (mm)
	Min	Max
U375AB01	27	38	180	75	125	15.5	63	12	35	16.5

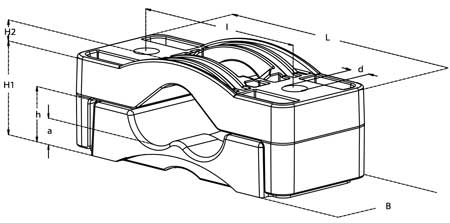

Pictured: Prysmian Bicon U375AB01 Dutchclamp Trefoil Cable Cleats - Dimension Illustration

Dutchclamps

Dutchclamp cable clamps and cable blocks are installed to secure low, medium and high voltage power cables to cable risers, tunnels, shafts and substation cable containment.



Prysmian Bicon U375AB01 Dutchclamp Trefoil Cable Cleat - 27-38mm
