ABB POLIM-D..PI-2/-3 High Voltage AC Surge Arresters

Indoor / Outdoor 4kV - 42kV



ABB POLIM-D..PI-2/-3 high voltage AC surge arresters are suitable for indoor and outdoor installation to protect against multiple atmospheric and switching overvoltages including Very Fast Transients (VFT). ABB POLIM-D..PI-2/-3 surge arresters cover the complete range of continuous operating voltages from 4-42kV(kV rms), including 6.6kV, 11kV, 15kV, 20kV, 24kV, 33kV, 36kV cable networks and systems. Designed and tested according to IEC 60099-4.

ABB POLIM-D..PI-2/-3 arrester is available in cone size 2 or 3 and applicable for inner cone systems according to DIN EN 50181 and DIN 47637.

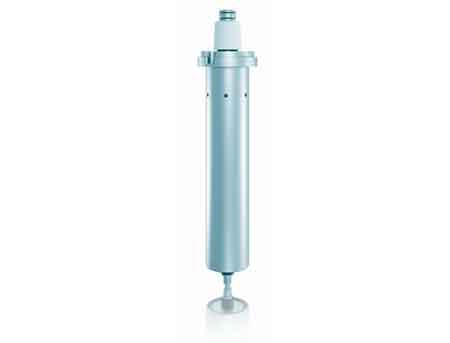

ABB POLIM-D..PI-2/-3 Surge Arrester

ABB POLIM-D..PI-2/-3 High Voltage Surge Arresters (AC) Applications

  • Transformers
  • Metal-clad switchgear



ABB POLIM-D..PI-2/-3 Medium Voltage Surge Arrester Technical Data

Type System Voltage  Contin-uous Operat-ing Voltage Nominal Dis-charge Current Short Circuit Rating 50Hz High Current Impulse IEC Line Dis-charge Class  Long Duration Current Impulse App-lication
Us Uc In Is Ihc

ABB

POLIM-D..PI-2/-3

≤ 52kV

≤ 42kV  10kA 16kA rms for 0.2s 65kA 1 250A / 2000μs  Indoor / Outdoor
