Marechal Connectors DS7C9 150Amp 6 Pin + Earth

Marechal Decontactors

Connections - 6P+E

Marechal Plugs & Sockets

Marechal Connectors DS7C9 150Amp 6 Pin + Earth

Connect with confidence and disconnect with safety - thanks to integral load-break isolating switch mechanism, the Marechal decontactor socket allows users to connect and disconnect electrical equipment safely up to 250 A

A release button cuts the power and de-energises the Marechal plug before it can be removed.

Even in the event of a short-circuit, the Marechal connector guarantees user safety and eliminates any electrocution hazard.

Reduce downtime - when Marechal connectors are used in lieu of hard-wiring, a fitter can replace a motor safely and efficiently.

A blocked submersible pump can be up and running in a matter of minutes instead of hours and with just one person. Operating costs are reduced as re-wiring on site is no longer necessary with Marechal connectors.

Provides automatic IP66/67 watertight seal - the Marechal plug and socket is automatically watertight just by inserting the plug or by closing the socket lid when you remove the plug - there is no need to turn any sealing ring.

Ensure long working life - the Marechal decontactor butt contacts have silver-nickel tips which are an excellent conductor, corrosion-resistant, shock resistant (Ik08) and environmentally sound (-40 °C to +60 °C).

Marechal assemblies provide a true fit-and-forget connector allowing continued production without need to regularly replace power plugs and connectors.

Marechal Plugs, Sockets & Connectors for Motor Connections - 6P+E

Marechal Connectors Part Numbers	DN9C	DSN7C3	DS7C3	DN7C6	DS7C9
Imax per phase	30 A	32 A	50 A	90 A	150 A
Umax	415 V	500 V	500 V	415 V	500 V
AC-22 switching capability	30 A / 415 V	32 A / 500 V	50 A / 500 V	90 A / 415 V	-
Same dimensions as	DN1	DSN3	DS6	DN6	DS2
Auxiliary contacts (max.)	2	-	3	-	2
Keying positions (1)	2	-	5	-	-
Ambient temperature	-40 °C to +60 °C for all
Wiring (terminals)	screw-type

YouTube Video Playlist: Marechal Industrial Plugs & Sockets

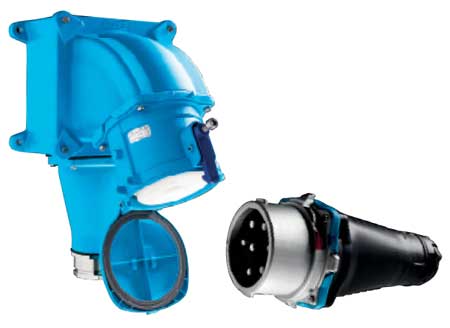

Marechal DS7C9 Connectors 150Amp 6 Pin + Earth

Marechal Connectors DS7C9 150Amp 6 Pin + Earth Motor Connections
