BW LSF Brass Cable Glands - CMP Solo Cable Glands Low Smoke & Fume, Zero Halogen

CMP Solo Cable Glands

CMP BW Brass LSF Cable Glands

Low Smoke & Fume, Zero Halogen





CMP LSF BW brass glands are suitable for all types of indoor LSF steel wire armoured cables providing mechanical retention and electrical continuity of cable via armour wire termination - CMP Solo LSF BW gland pack includes LSF Zero Halogen shroud.

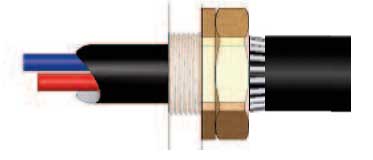

Pictured : CMP BW Solo LSF Cable Gland - Installation Complete

CMP BW Solo LSF Cable Glands

• Cable Glands Type : CMP BW SOLO
• Operating Temperature : -60°C to +130°C
• Cable Gland Material : Brass, Nickel Plated Brass, Stainless Steel (pictured), Aluminium
• Suit Cables : Armoured
• CMP Cable Gland Kit Contents : Up to & including size 25 - 2 cable glands, 2 locknuts, 2 earth tags & 2 LSF gland shrouds. Size 32 & above - 1 cable gland, 1 locknut, 1 earth tag & 1 LSF gland shroud

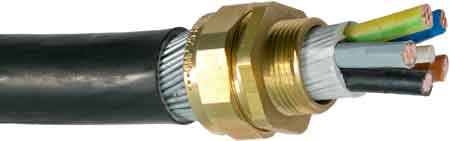

Pictured : CMP Solo BW Low Smoke & Fume (Zero Halogen) Cable Glands



YouTube Video Playlist: CMP Cable Glands For Low Voltage Cable Termination

CMP BW20S LSF Brass Cable Gland (Zero Halogen) - 11.6-16.1mm

CMP BW20 LSF Brass Cable Gland (Zero Halogen) 13.9-21.1mm

CMP BW25 LSF Brass Cable Gland (Zero Halogen) 19.9-27.4mm

CMP BW32 LSF Brass Cable Gland (Zero Halogen) 26.2-34.4mm

CMP BW40 LSF Brass Cable Gland (Zero Halogen) 32.1-42.4mm

CMP BW50S LSF Brass Cable Gland (Zero Halogen) 38.1-50.1mm

CMP BW50 LSF Brass Cable Gland (Zero Halogen) 44.0-55.7mm

CMP BW63S LSF Brass Cable Gland (Zero Halogen) 50-62.4mm

CMP BW63 LSF Brass Cable Gland (Zero Halogen) 55.9-68.2mm

CMP BW75S LSF Brass Cable Gland (Zero Halogen) 61.9-76.8mm

CMP BW75 LSF Brass Cable Gland (Zero Halogen) 67.9-82.9mm

CMP BW90 LSF Brass Cable Gland (Zero Halogen) 79.3-90.4mm
