CMP A2 Brass LSF Cable Glands

Low Smoke & Fume, Zero Halogen

CMP A2 Solo Halogen Free Cable Glands





CMP LSF A2 brass stuffing glands are suitable for all types of indoor or outdoor unarmoured LSF cable and conduit wire installations - CMP A2 Solo LSF gland pack includes LSF Zero Halogen shroud.



CMP A2 Solo LSF Cable Glands

  • Cable Glands Type : CMP A2 SOLO
  • Operating Temperature : -60°C to +130°C
  • Ingress Protection : IP66, IP67, IP68
  • Cable Gland Material : Brass, Nickel Plated Brass, Stainless Steel, Aluminium (pictured)
  • Suit Cables : Unarmoured
  • Cable Sealing Area : Cable Outer SheathCMP A2 Solo Cable Glands - Aluminium
  • CMP Cable Gland Kit Contents : Up to & including size 25 - 2 cable glands, 2 locknuts, 2 earth tags & 2 LSF gland shrouds. Size 32 & above - 1 cable gland, 1 locknut, 1 earth tag & 1 LSF gland shroud

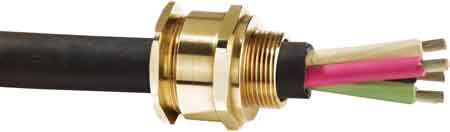

Pictured : CMP Solo A2 Low Smoke & Fume (Zero Halogen) Cable Glands



CMP Cable Glands - A2 Unarmoured Cable Glands (LSF Solo)



CMP Solo Cable Glands - Specification

CMP A2 SOLO type brass indoor and outdoor cable gland kit for use with all types of unarmoured cable, providing a seal on the cable outer sheath. The CMP Solo cable gland provides both a sealing function and also mechanical cable retention. All CMP Cable Glands are EMC Tested.

A2 Cable Glands

The CMP A2 SOLO range of industrial LSF cable glands are designed and tested to BS 6121:Part 1:1989, meets or surpasses the requirements of EN 50262 :1999, and is produced from Brass grade CuZn39Pb3 (CW614N) to EN12168. Other cable gland materials including aluminium are also available in this standard design. The CMP cable gland kit includes CMP SOLO LSF (Low Smoke & Fume) Halogen Free Shrouds and Seals.

YouTube Video Playlist : CMP Cable Glands For Low Voltage Cable Termination




Adobe CMP A220SS LSF Brass Cable Gland (Zero Halogen) - 3.1-8.6mm

Adobe CMP A220S LSF Brass Cable Gland (Zero Halogen) - 6.1-11.6mm

Adobe CMP A20 LSF Brass Cable Gland (Zero Halogen) - 6.5-13.9mm

Adobe CMP A225 LSF Brass Cable Gland (Zero Halogen) - 11.1-19.9mm

Adobe CMP A232 LSF Brass Cable Gland (Zero Halogen) - 17-26.2mm

Adobe CMP A240 LSF Brass Cable Gland (Zero Halogen) - 22-32.1mm

Adobe CMP A250S LSF Brass Cable Gland (Zero Halogen) - 29.5-38.1mm

Adobe CMP A250 LSF Brass Cable Gland (Zero Halogen) - 35.6-44mm

Adobe CMP A263S LSF Brass Cable Gland (Zero Halogen) - 40.1-49.9mm

Adobe CMP A263 LSF Brass Cable Gland (Zero Halogen) - 47.2-55.9mm

Adobe CMP A275S LSF Brass Cable Gland (Zero Halogen) - 47.2-55.9mm

Adobe CMP A275 LSF Brass Cable Gland (Zero Halogen) - 59.1-67.9mm

Adobe CMP A290 LSF Brass Cable Gland (Zero Halogen) - 66.6-79.3mm
